Repair Cable

Temperature Control Cable Routing:

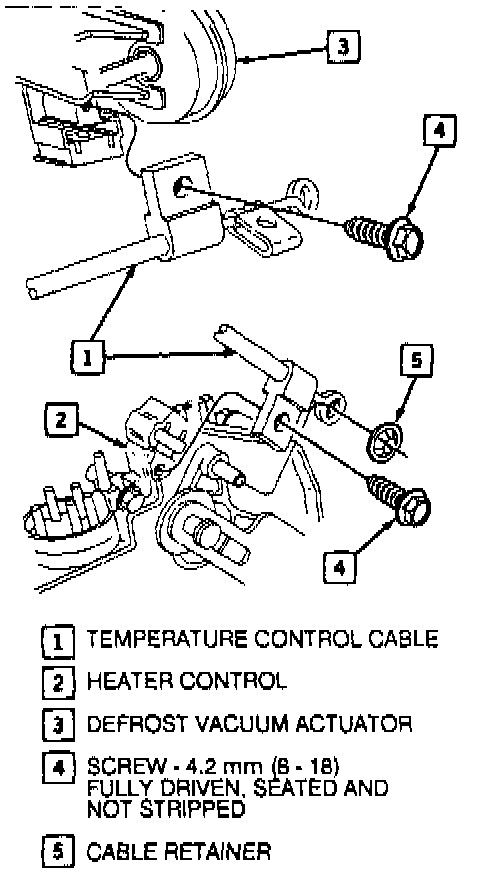

Temperature Control Cable Repair:

When servicing a temperature control cable assembly for failure of the cable to "snap in" to either the heater control or vacuum actuator, the following repair procedure can be used:
1. Remove the effected cable end only. (Refer to "Temperature Control Cable Removal").
2. Rotate cable "snap in" 90°.
3. Secure to heater control or vacuum actuator bracket with a hex headed, self tapping screw.
4. Reinstall cable, referring to "Temperature Control Cable Installation."
