Replace Cable

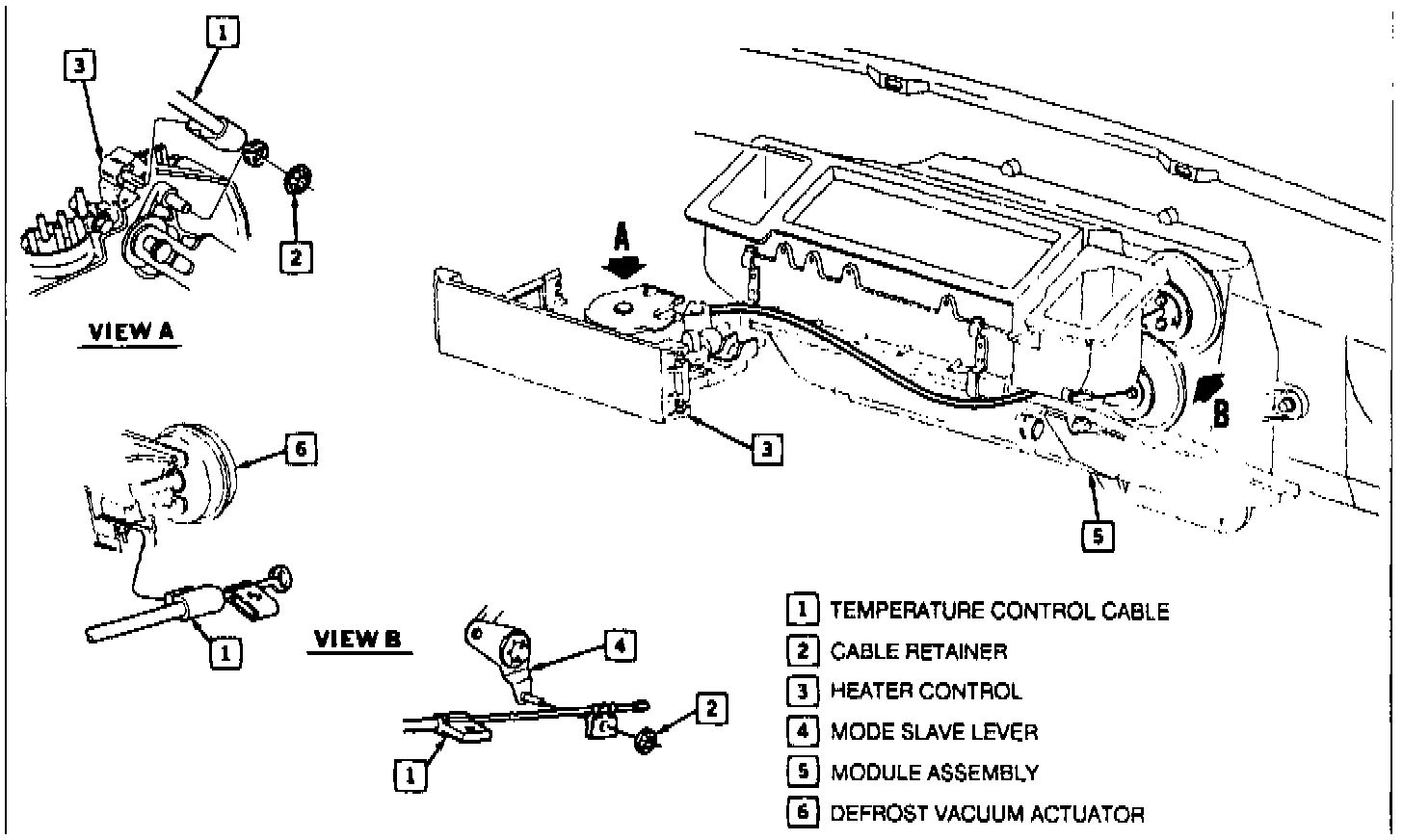

Temperature Control Cable Routing:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Steering column opening filler.
3. Right sound insulator.
4. Instrument Panel (I.P.) compartment insert.
5. Right I.P. trim plate.
6. Lower I.P. trim plate.
7. Control assembly and pull rearward.
8. Temperature cable at control assembly.
9. Cable from actuator.

INSTALL OR CONNECT
1. Cable to actuator.
2. Temperature cable at control assembly.
3. Control assembly to I.P.
4. Lower I.P. trim plate.
5. Right I.P. trim plate.
6. I.P. compartment insert.
7. Right sound insulator.
8. Steering column opening filler.
9. Negative battery cable.
