Air Door Actuator / Motor: Testing and Inspection

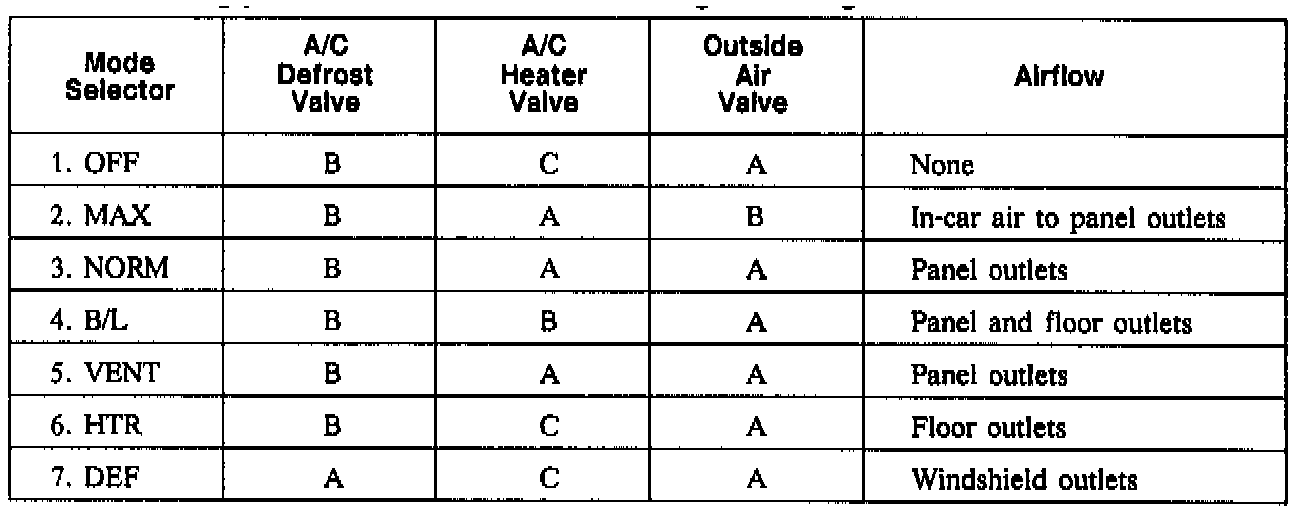

A/C Air Delivery System Diagnosis Table:

A/C Air Delivery:

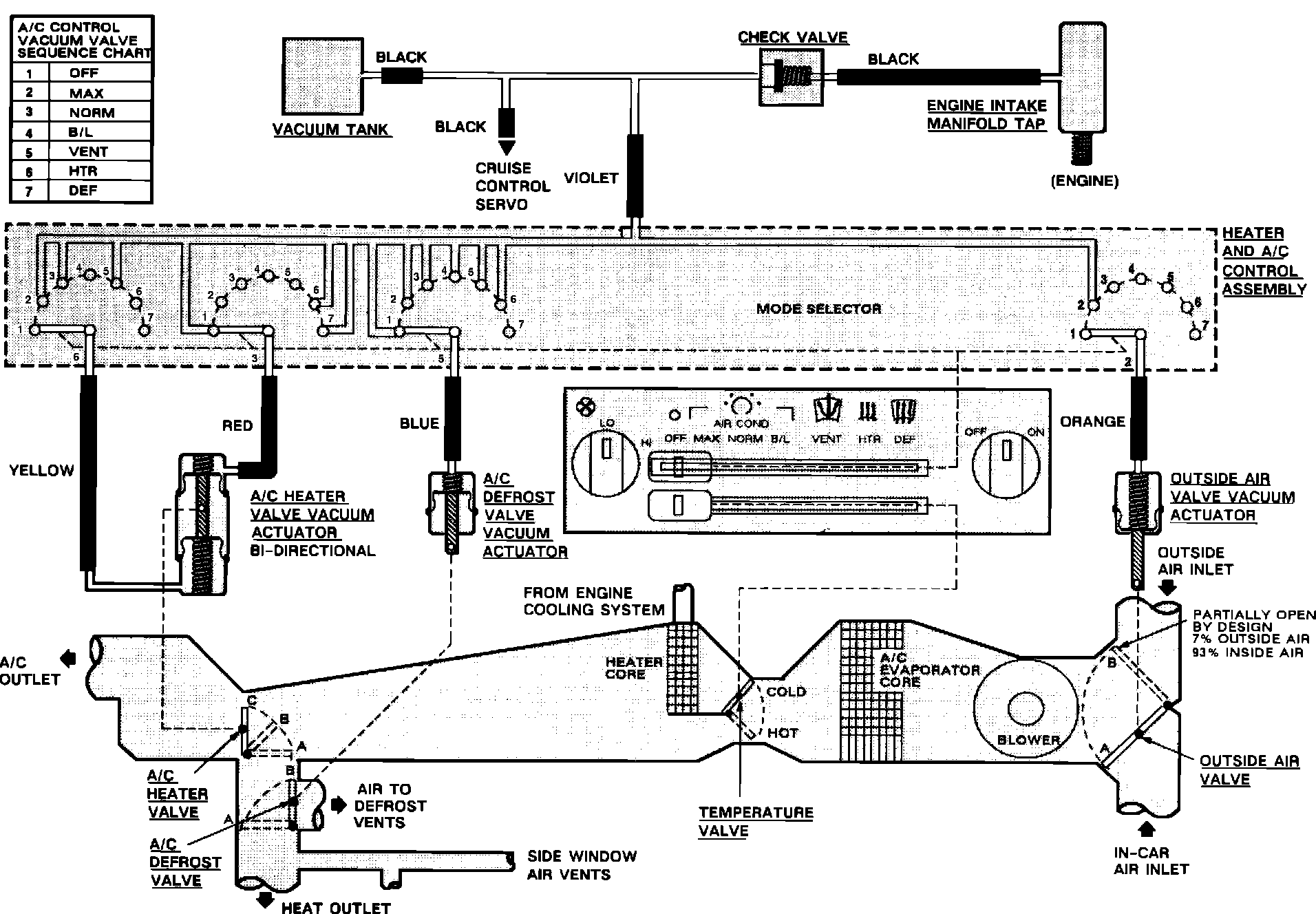

If airflow does not come from the proper outlets under one or more operating models, check the operation of the valves using the chart and diagram.
