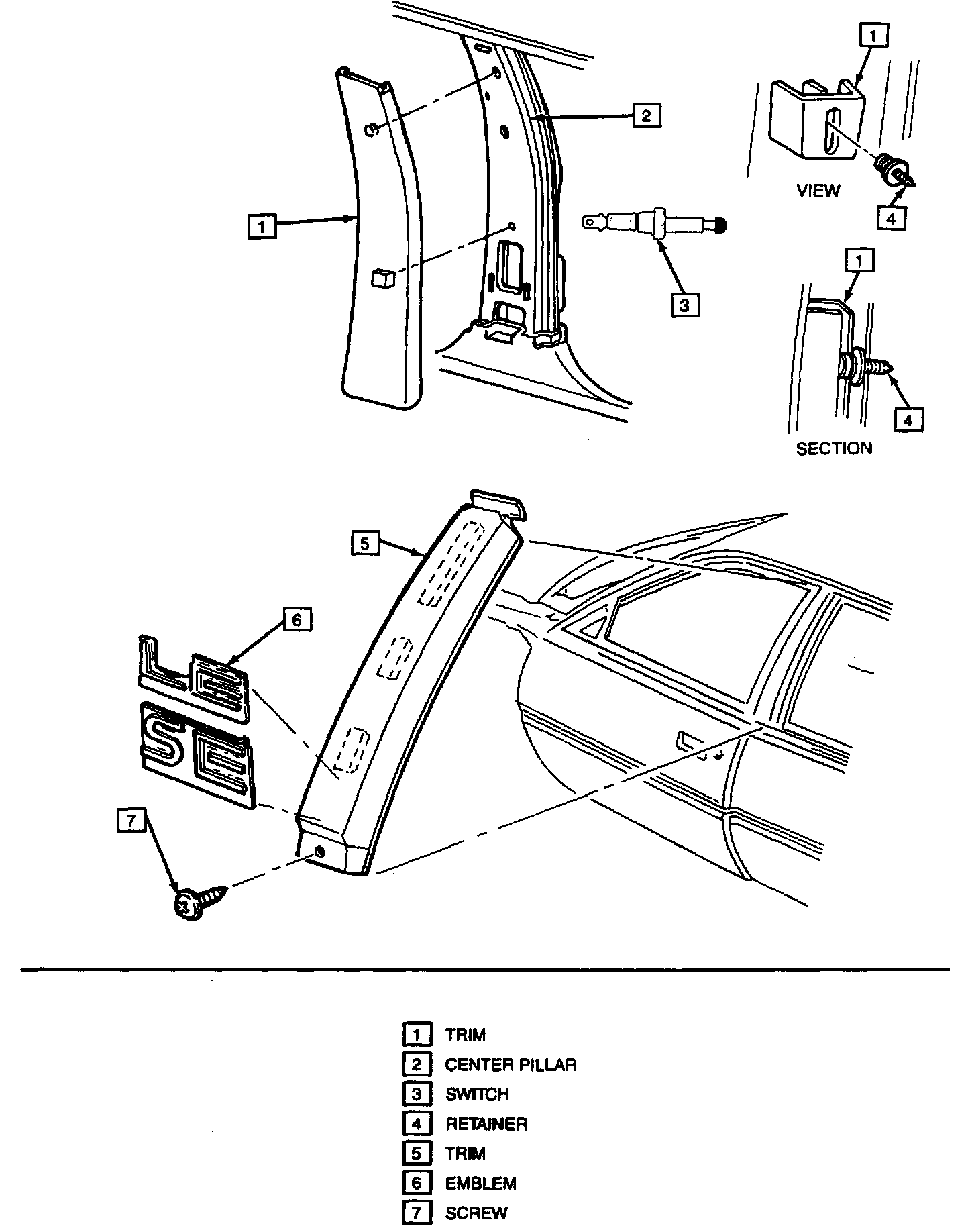

Center Pillar Trim

Center Pillar:

Center pillar interior trim is constructed of plastic and painted to match the interior of the vehicle. Retention is accomplished with screws and/or plastic clips

Door jamb switch assemblies consist of a plunger collar, threaded retainer and terminals. They are installed in the rear hinge pillars. When the door of the vehicle is closed, the plunger is depressed which creates an open in the ground circuit. When the door is opened, the plunger is released and completes the circuit to ground. When a new jamb switch is installed and the door is closed the first time, the plunger is forced into the sleeve and automatically adjusts the jamb switch for that particular door. If a jamb switch fails, it should not be readjusted by hand. A new jamb switch should be installed.

Remove or Disconnect

1. Jamb switch (3).
2. Electrical connector.

Install or Connect

1. Electrical connector.
2. Jamb switch (3).
