A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A087
A087

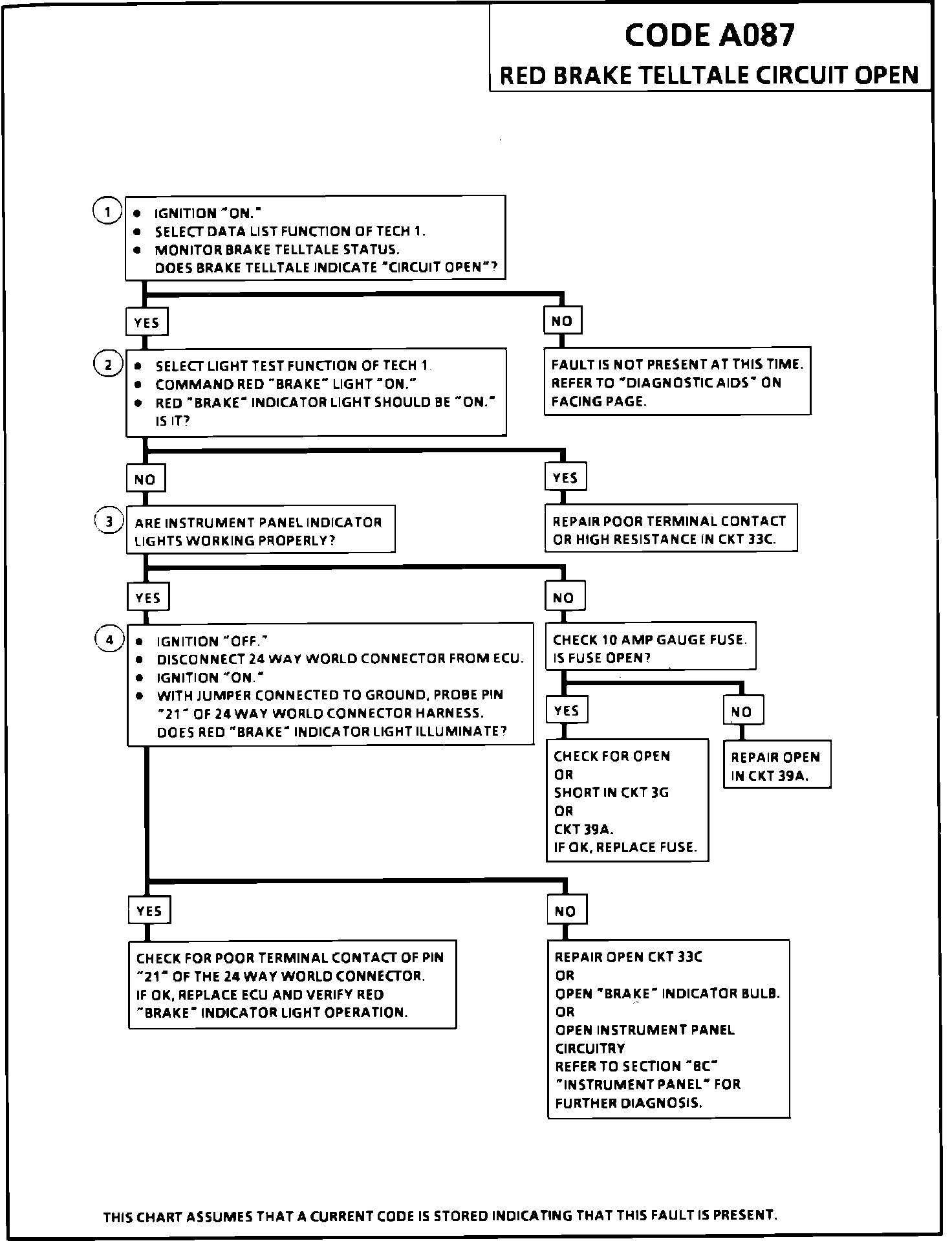

Fig. 59 Code A087 (Red Brake Telltale Circuit Open):
