Pontiac
>>
1991
>>
Grand AM L4-151 2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A077
A077

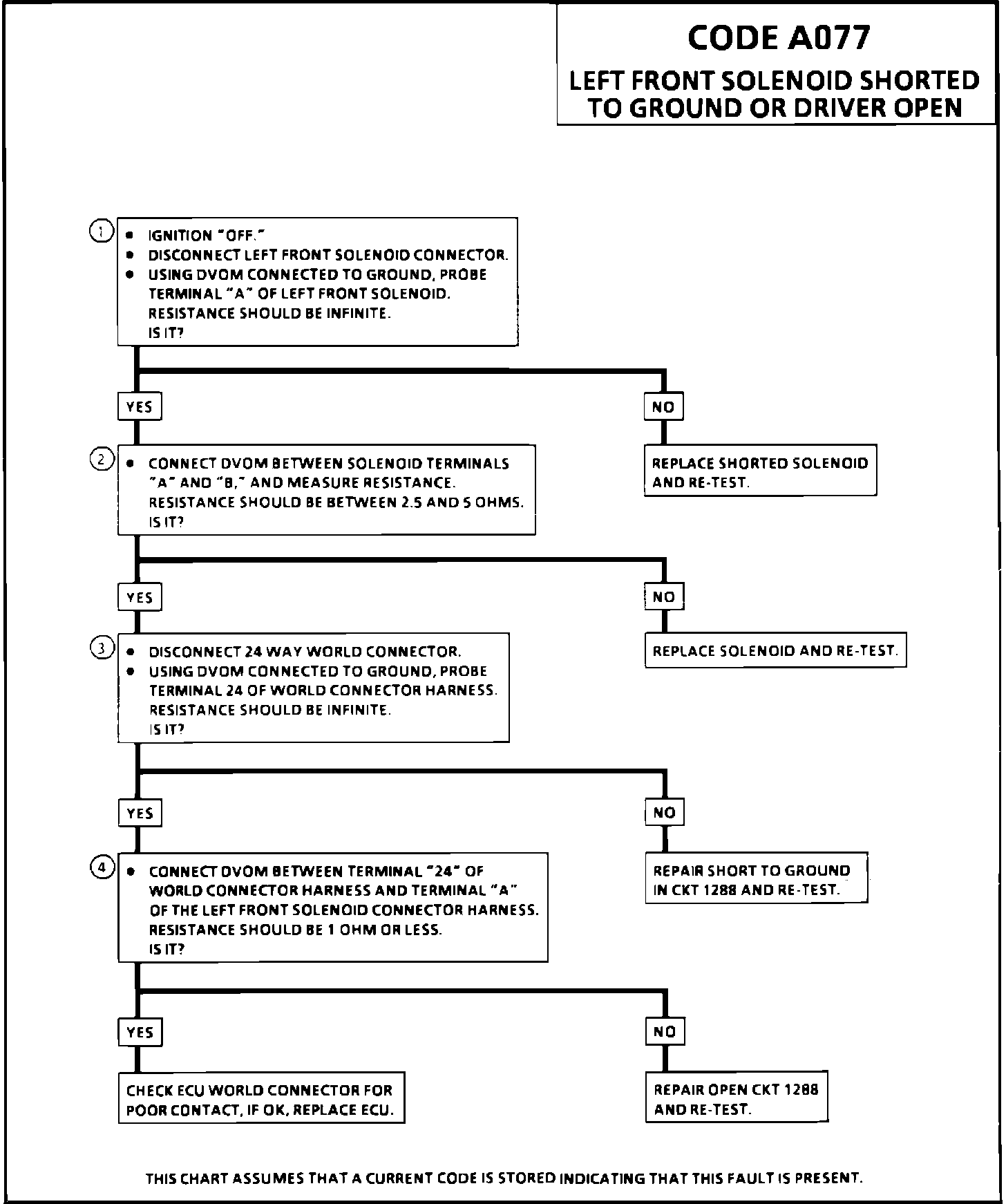

Fig. 54 Code A077 (Left Front Solenoid Shorted To Ground Or Driver Open):
