Home
>>
Pontiac
>>
1991
>>
Grand AM L4-151 2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A055
A055

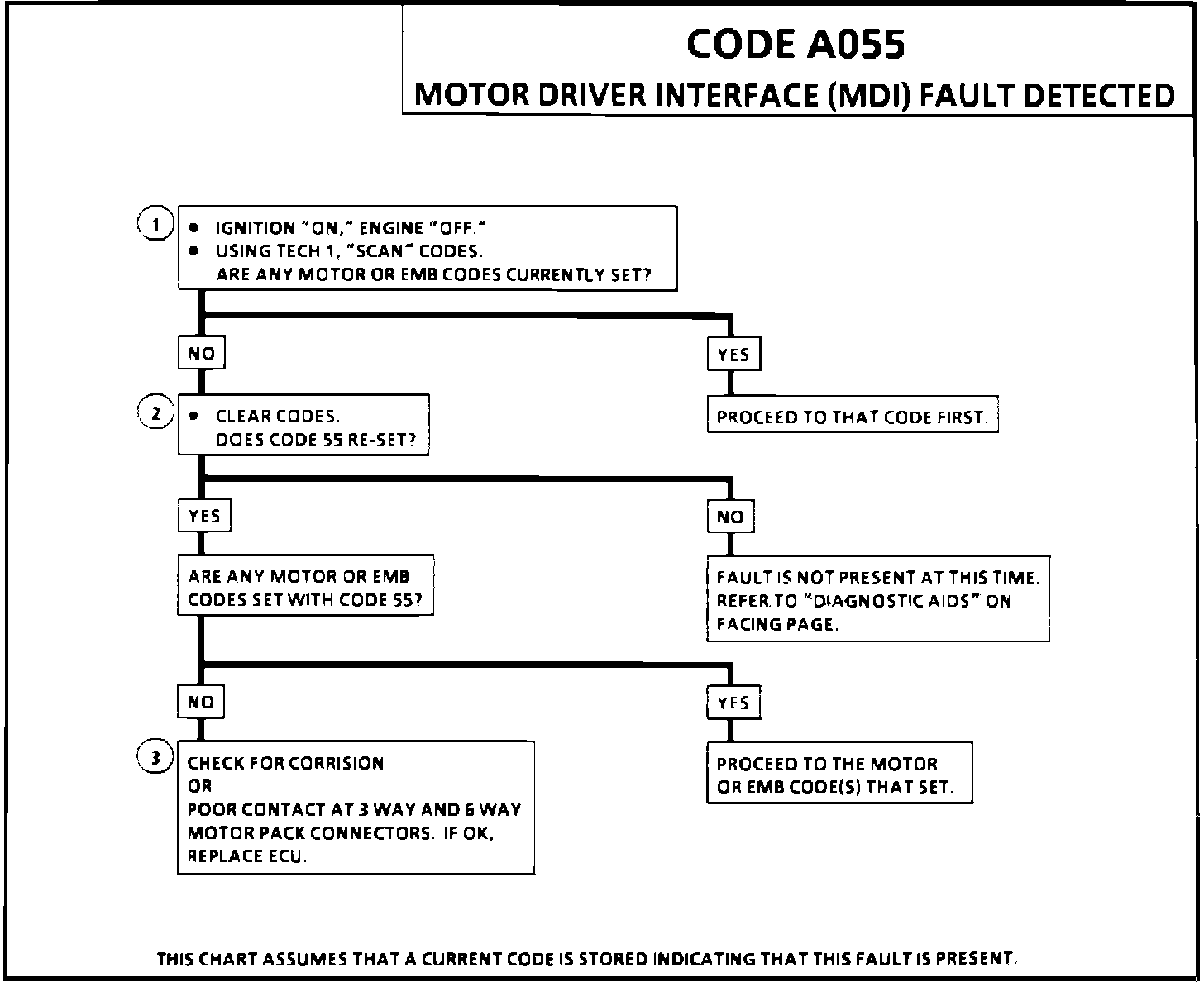

Fig. 39 Code A055 (Motor Driver Interface MDI Fault Detected):
