A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A017
A017

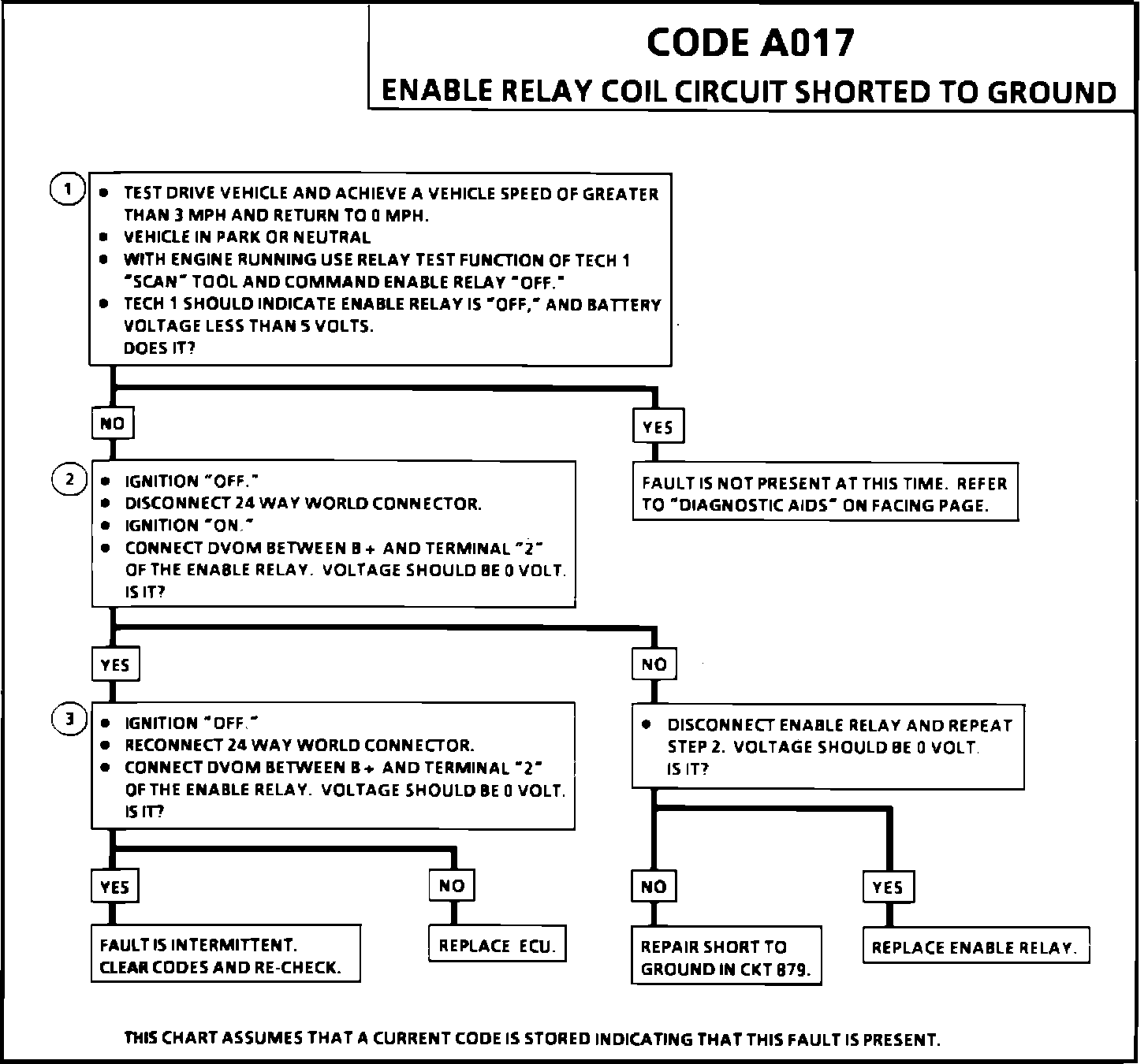

Fig. 15 Code A017 (Enable Relay Coil Circuit Shorted To Ground):
