Firebird V6-191 3.1L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
SIR Diagnostic System Check
SIR Diagnostic System Check

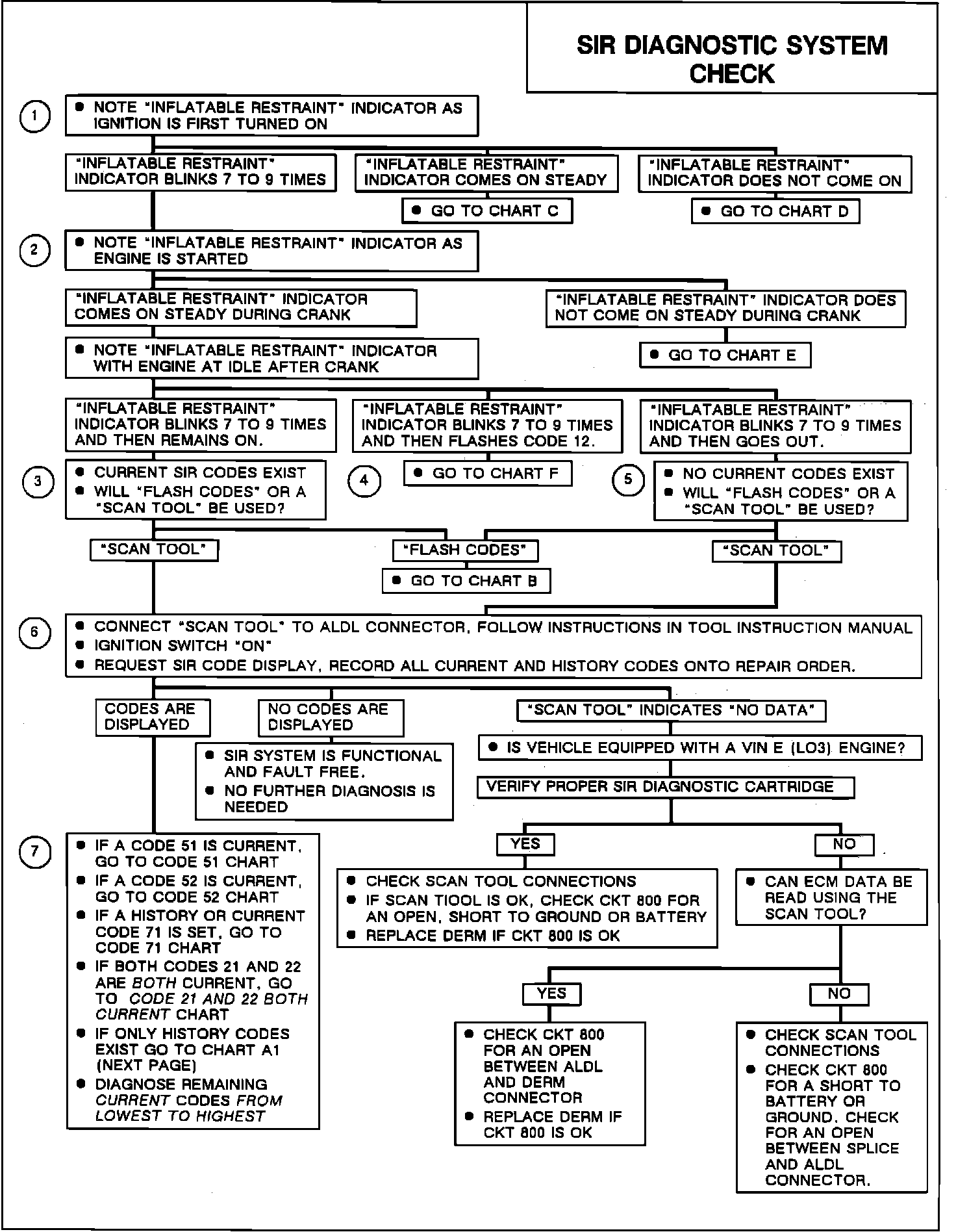

Fig. 19 SIR Diagnostic System Check:
