Home
>>
Pontiac
>>
1991
>>
Firebird V6-191 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G303
G303

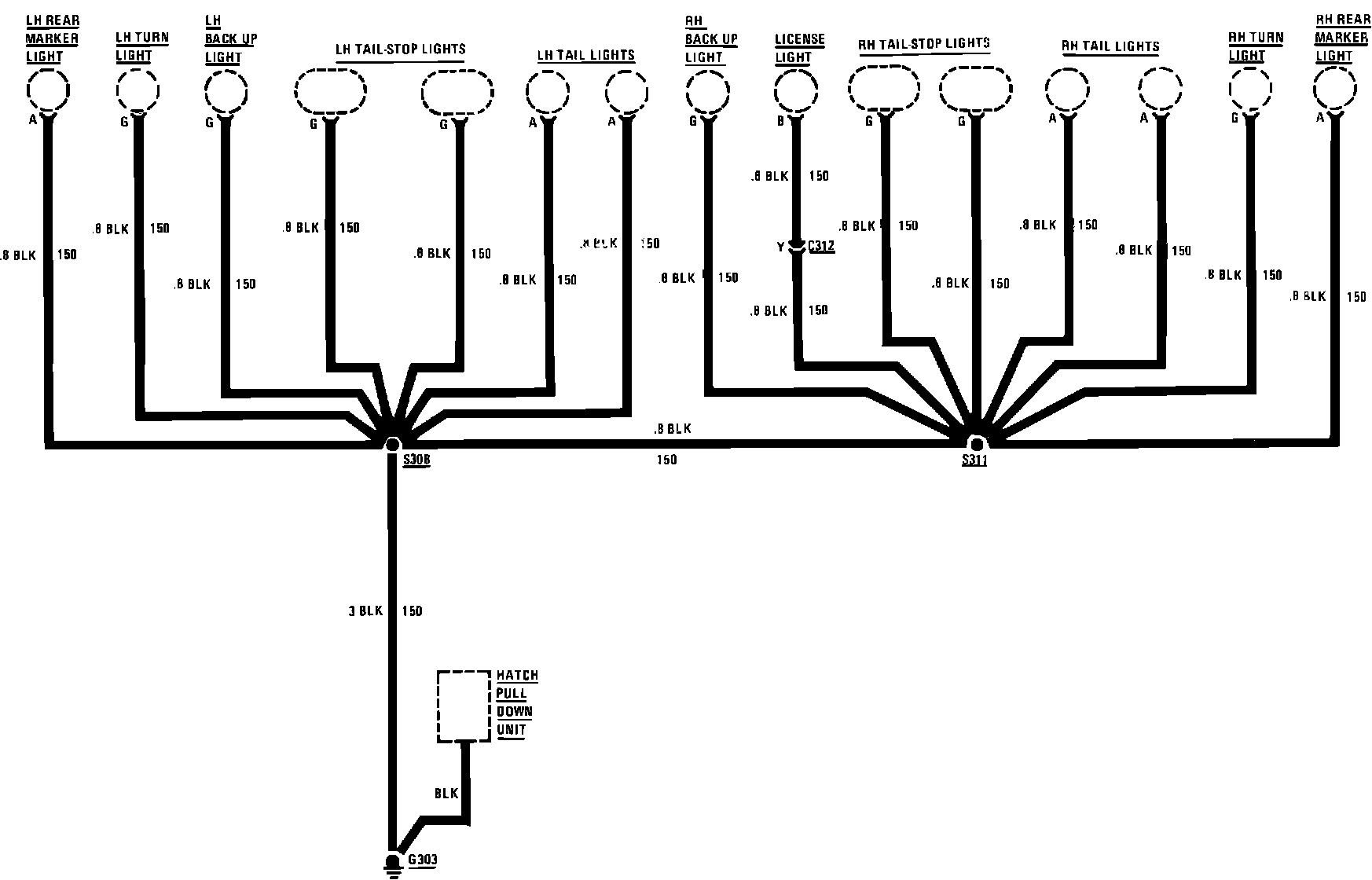

Ground Distribution: G303:

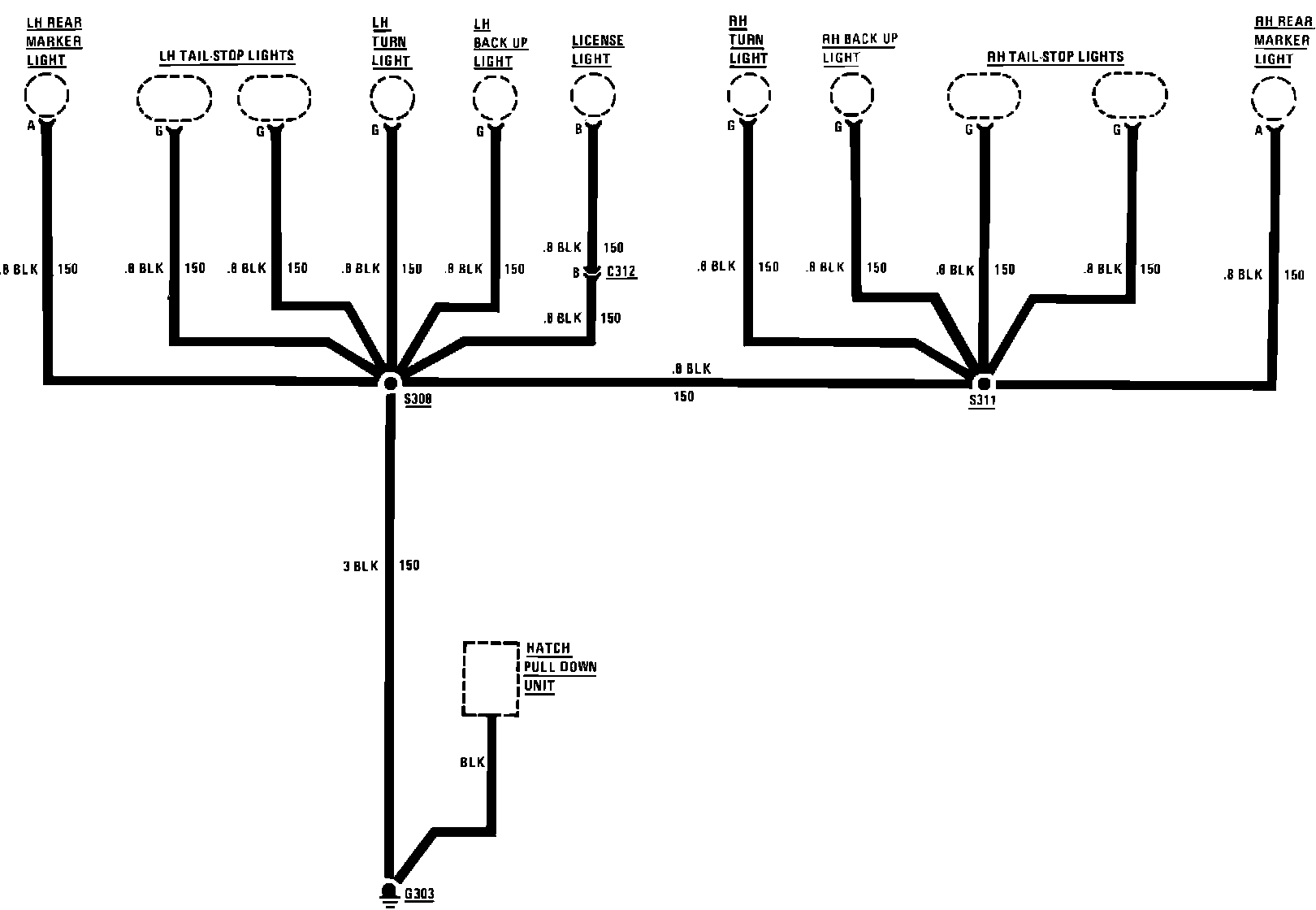

Ground Distribution. G303:
