Pontiac
>>
1991
>>
Firebird V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>

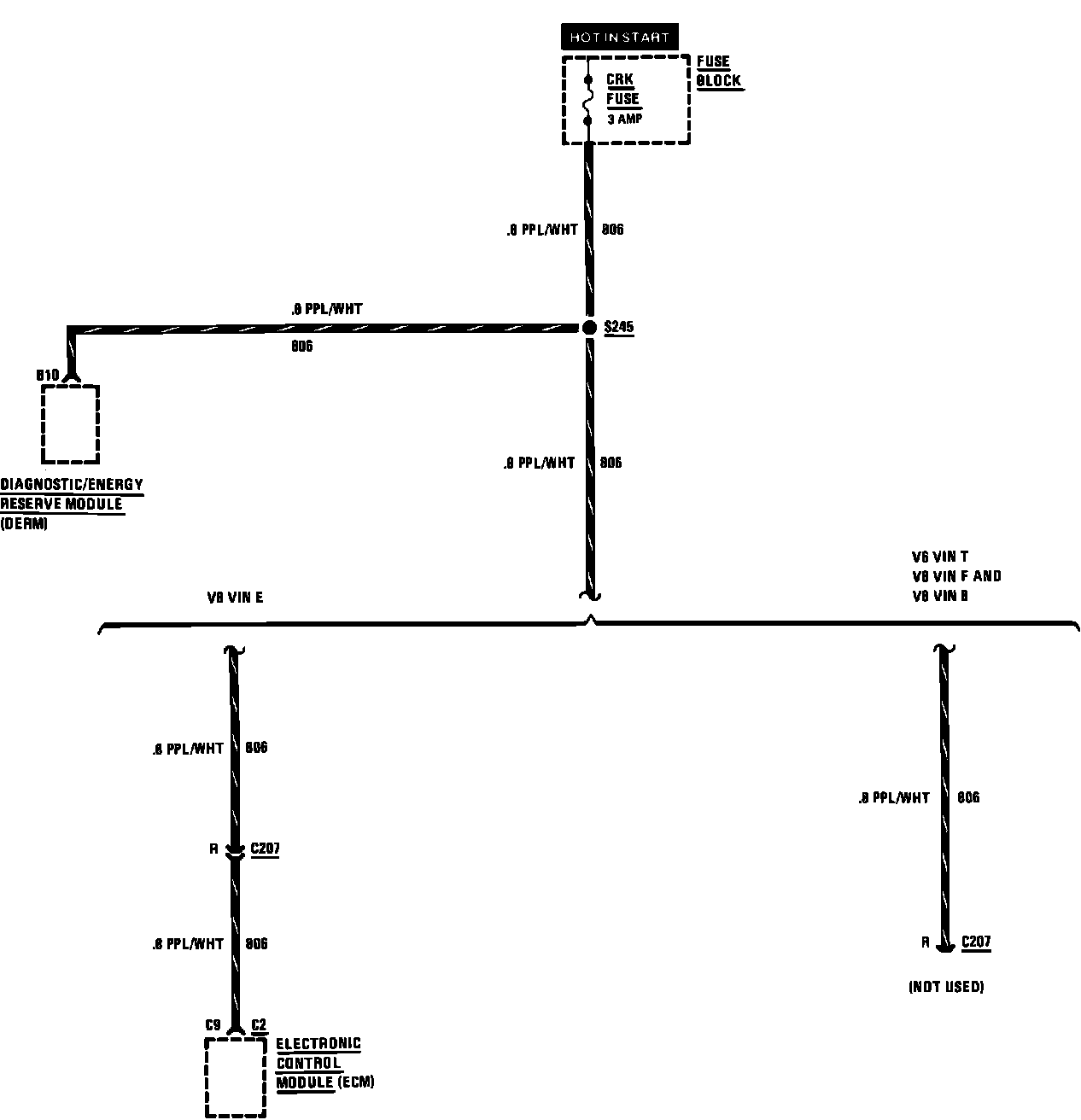

Crank Fuse
Crank Fuse
Fuse Block Details: CRK Fuse:
