Home >> Pontiac >> 1991 >> Firebird V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> ACC, Lid and Tail

ACC, Lid and Tail

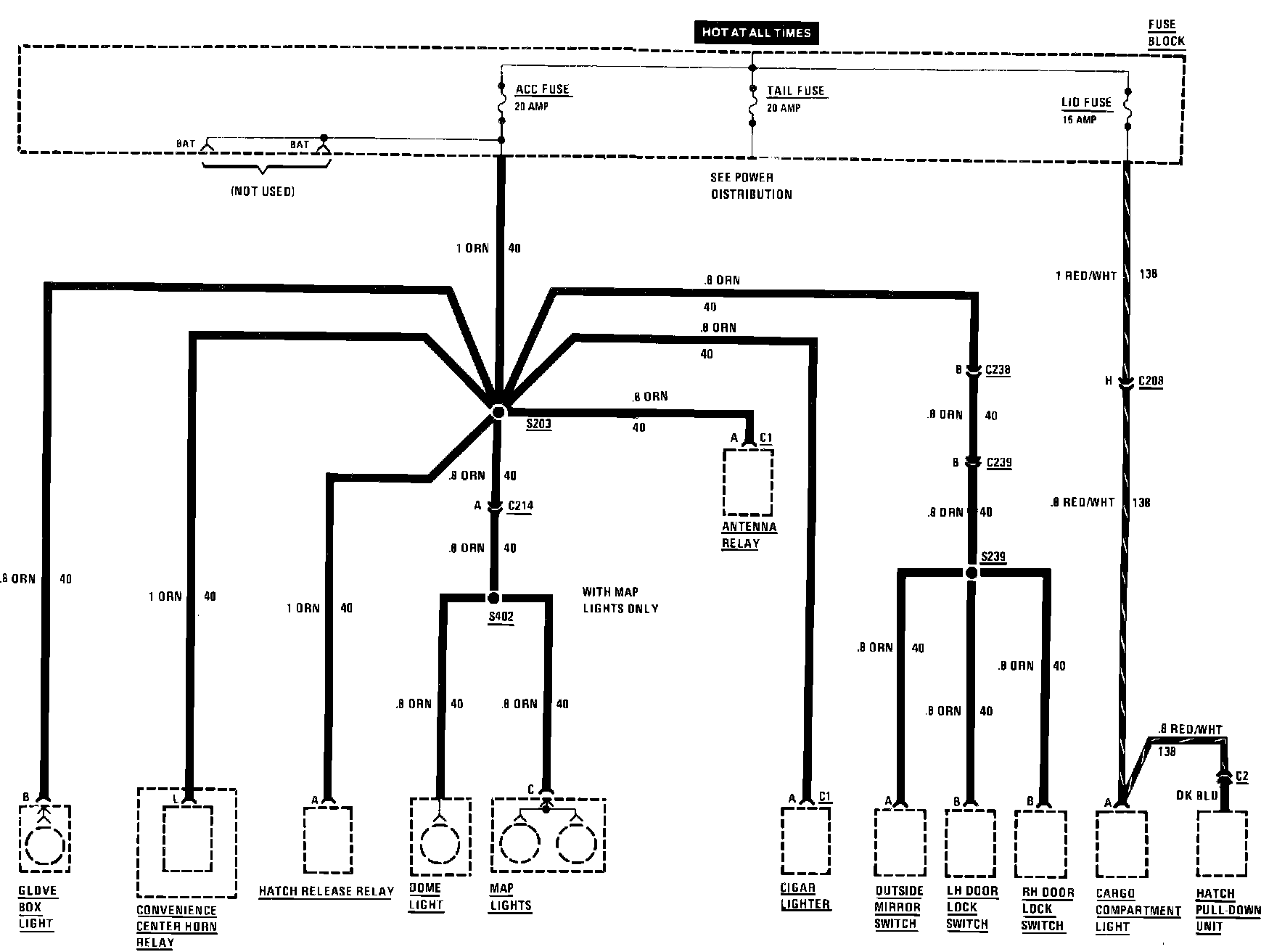

Fuse Block Details: ACC Fuse,Lid Fuse And Tail Fuse:
