Sequential Fuel Injection Wiring - Manual Update

91pontiac11

Bulletin Number: 91-8-16
Reference Number: 108118
Publish Date: 6/91


Subject: SERVICE MANUAL UPDATE - SECTION 8A ELECTRICAL DIAGNOSIS - SEQUENTIAL
FUEL INJECTION: V6 VIN C CHART (REV'D)

Models
Affected: 1991 BONNEVILLE MODELS

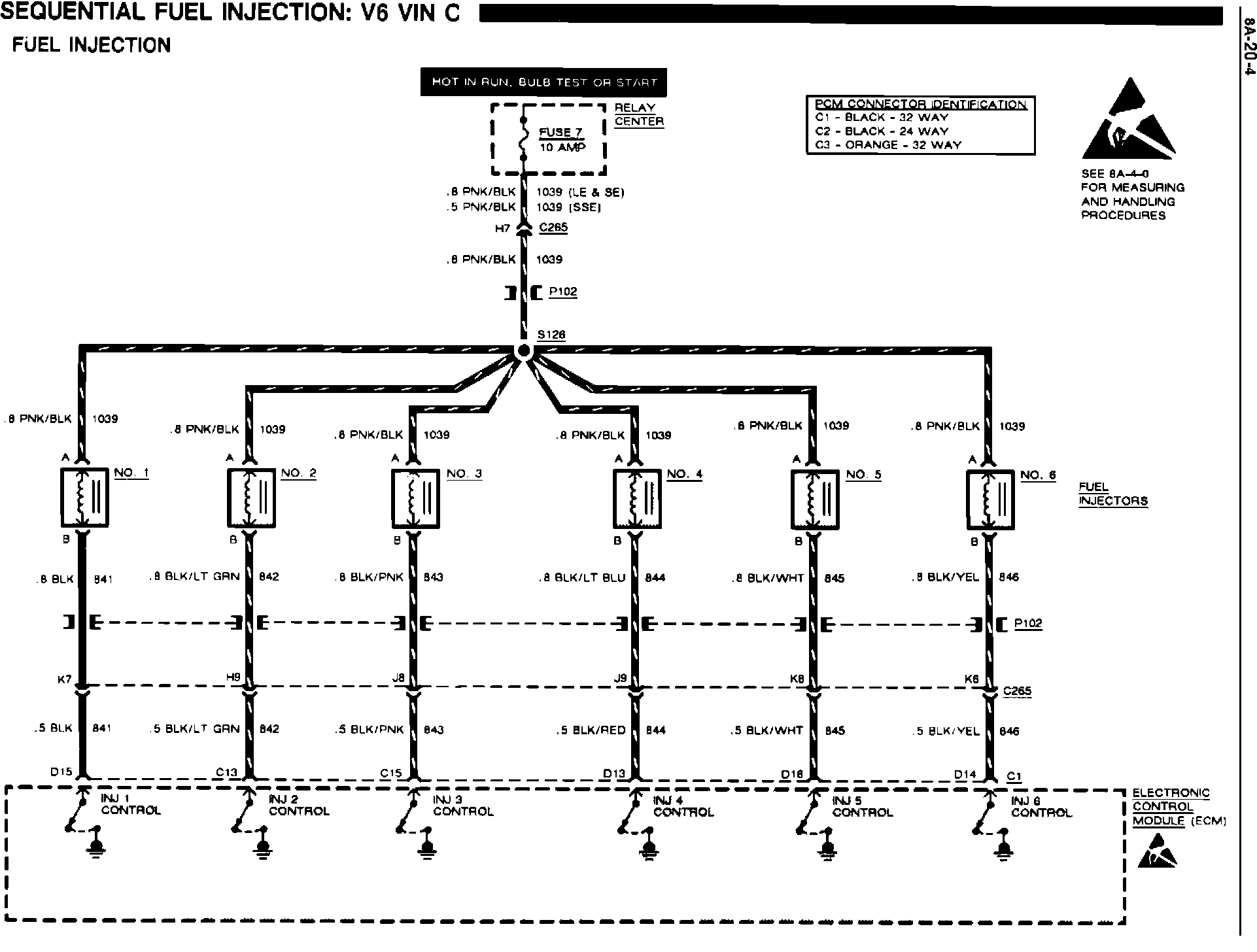

Attached is a revised Diagnostic Sequential Fuel Injection: V6 VIN C Chart - for Section 8A-20-4.
