Pontiac
>>
1991
>>
Bonneville V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Standard Model
>>
Fuse 16
Fuse 16

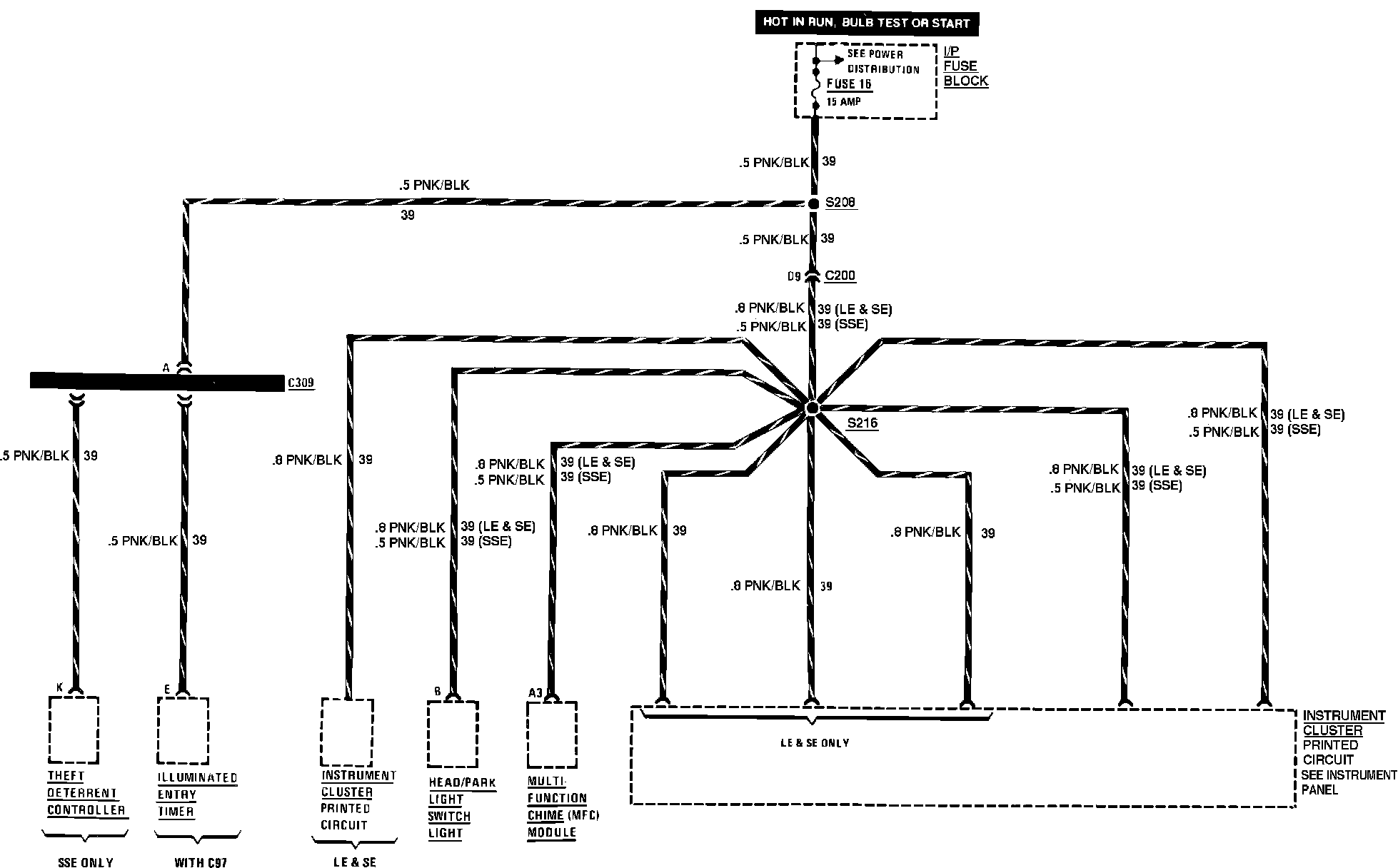

Fuse Panel Details. Fuse 16:
