Home
>>
Pontiac
>>
1991
>>
Bonneville V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Standard Model
>>
Fuse 13
Fuse 13

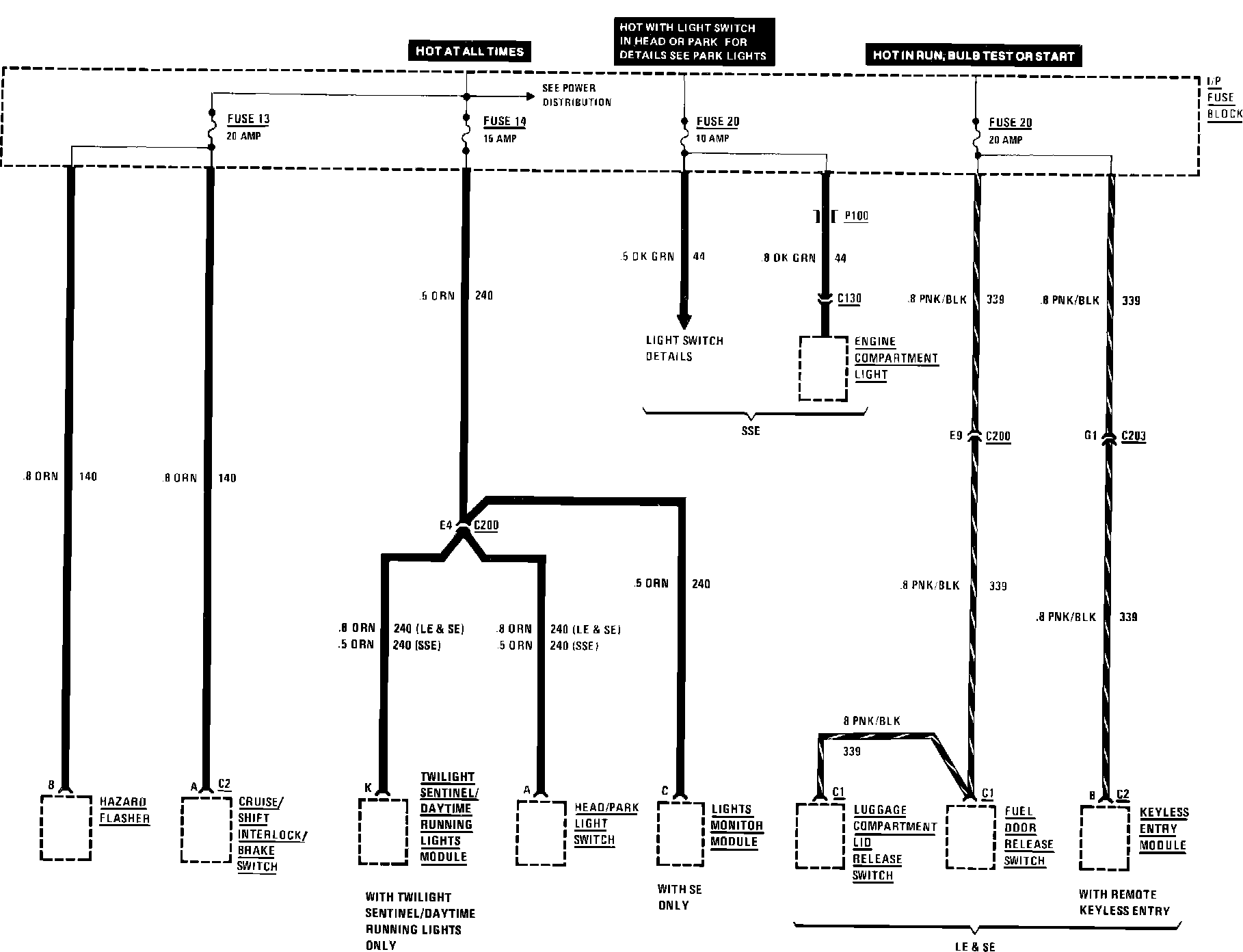

Fuse Panel Details. Fuses 13, 14 & 20:
