Home >> Pontiac >> 1991 >> Bonneville V6-3800 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> SSE Model >> Fuse 3

Fuse 3

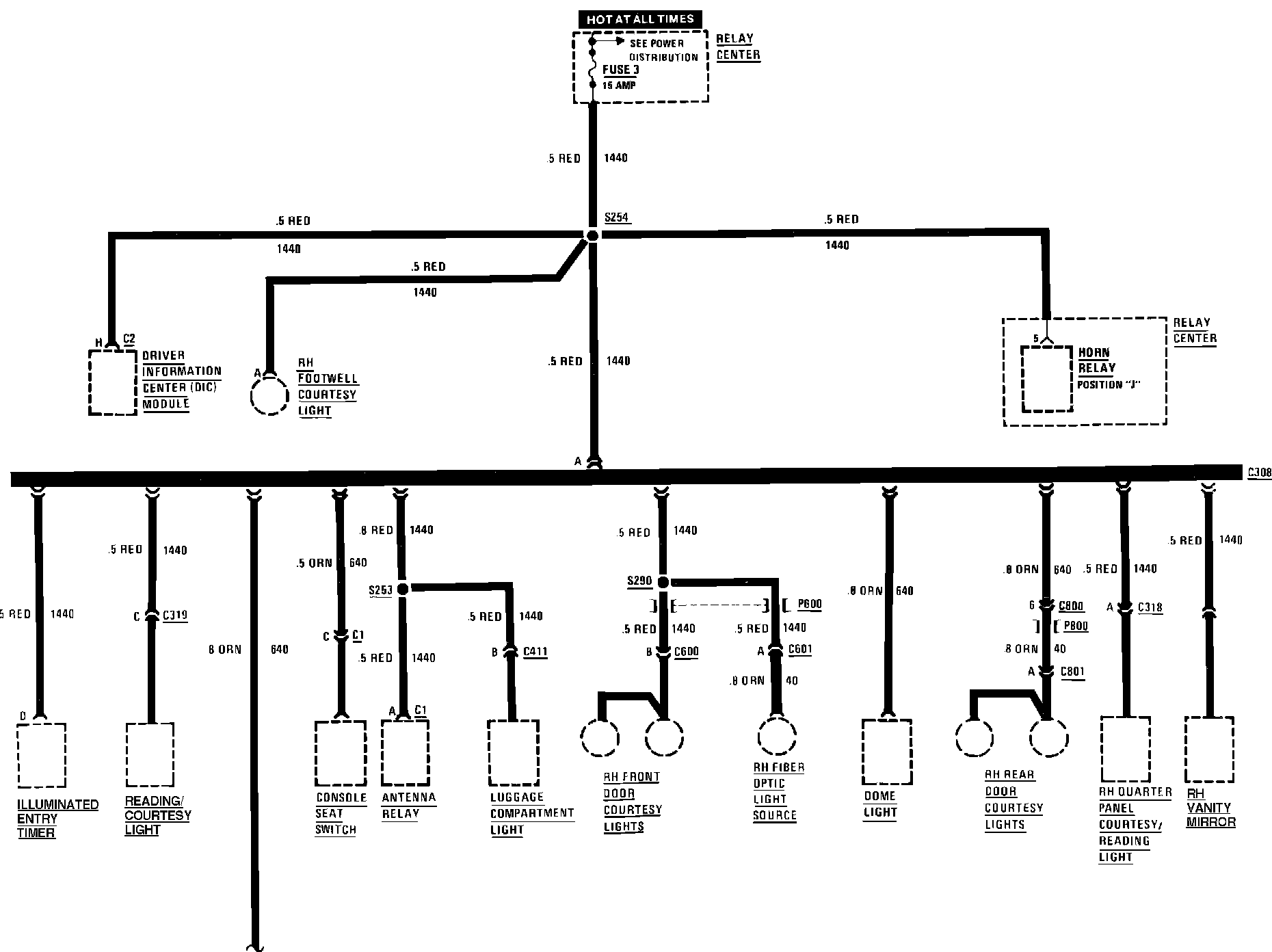

Fuse Panel Details. Fuse 3. SSE:

Fuse Panel Details. Fuse 3. SSE:
