Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
SSE Model
>>
Fuse 12
Fuse 12

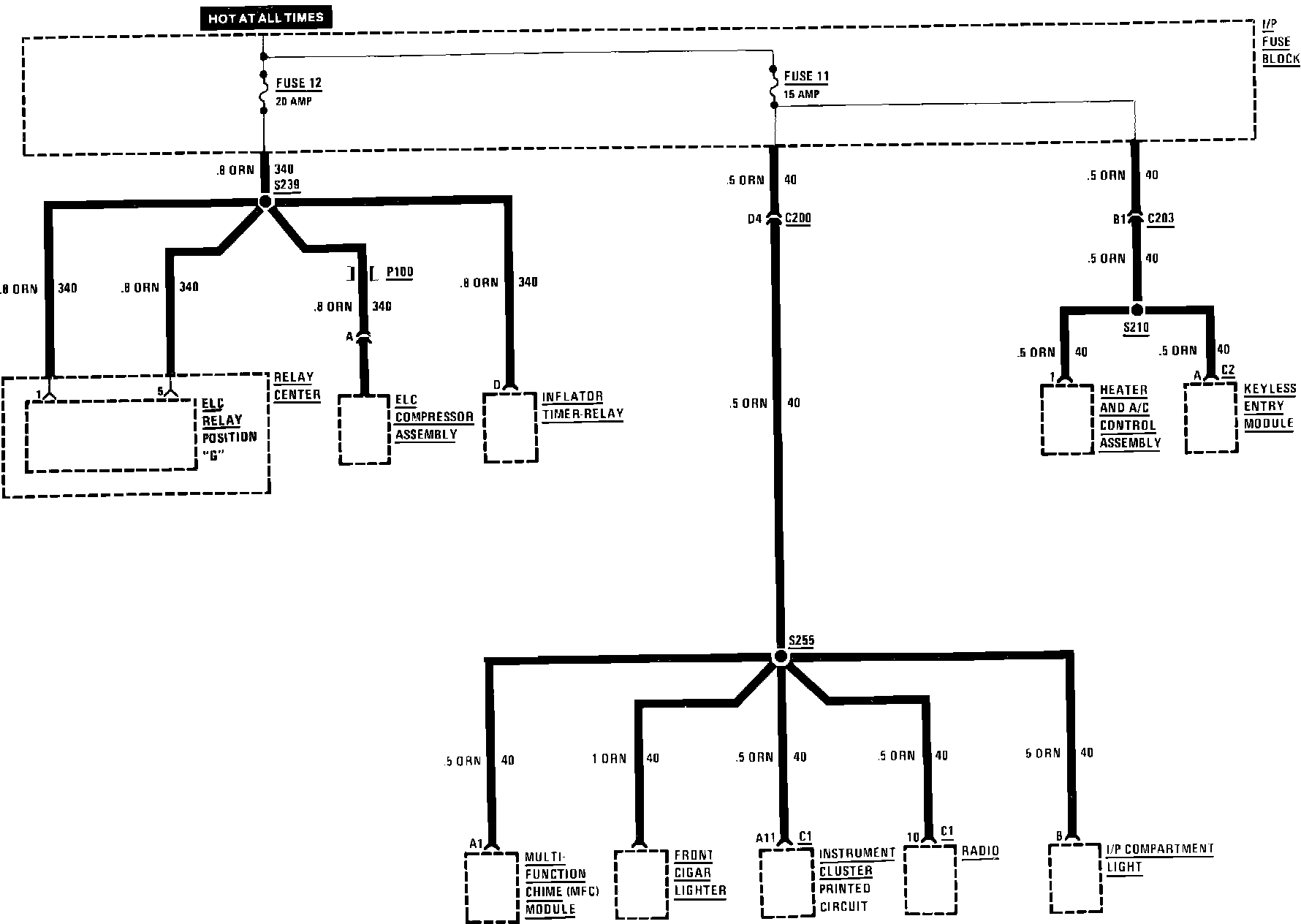

Fuse Panel Details. Fuses 10, 11 & 12. SSE:
