Home >> Pontiac >> 1991 >> Bonneville V6-3800 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Standard Model >> Clean Ground >> Less Driver Information Center

Less Driver Information Center

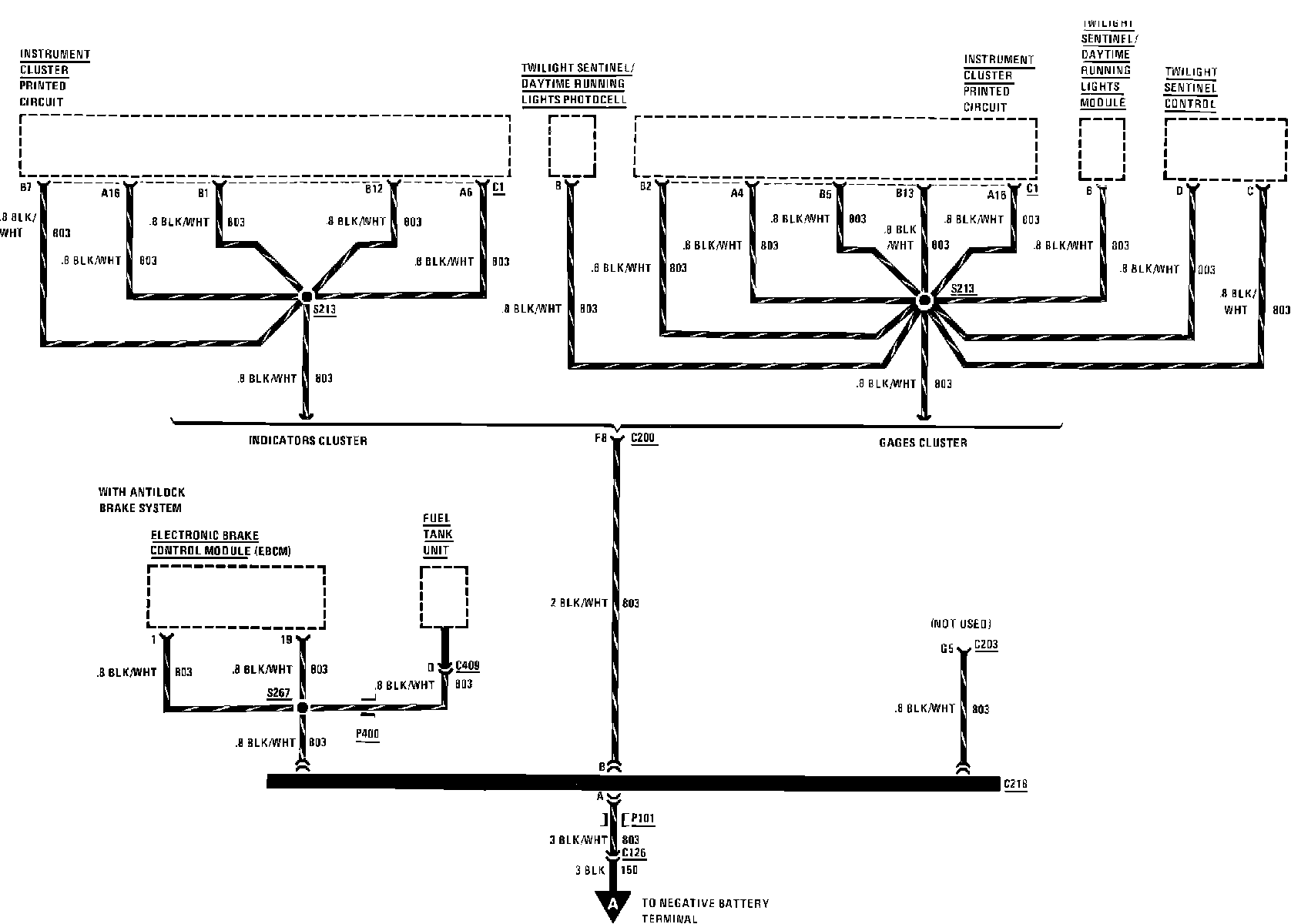

Ground Distribution. Clean Ground .less Driver Information Center (DIC):
