Pontiac
>>
1991
>>
Bonneville V6-3800 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
SSE Model
>>
G201
G201

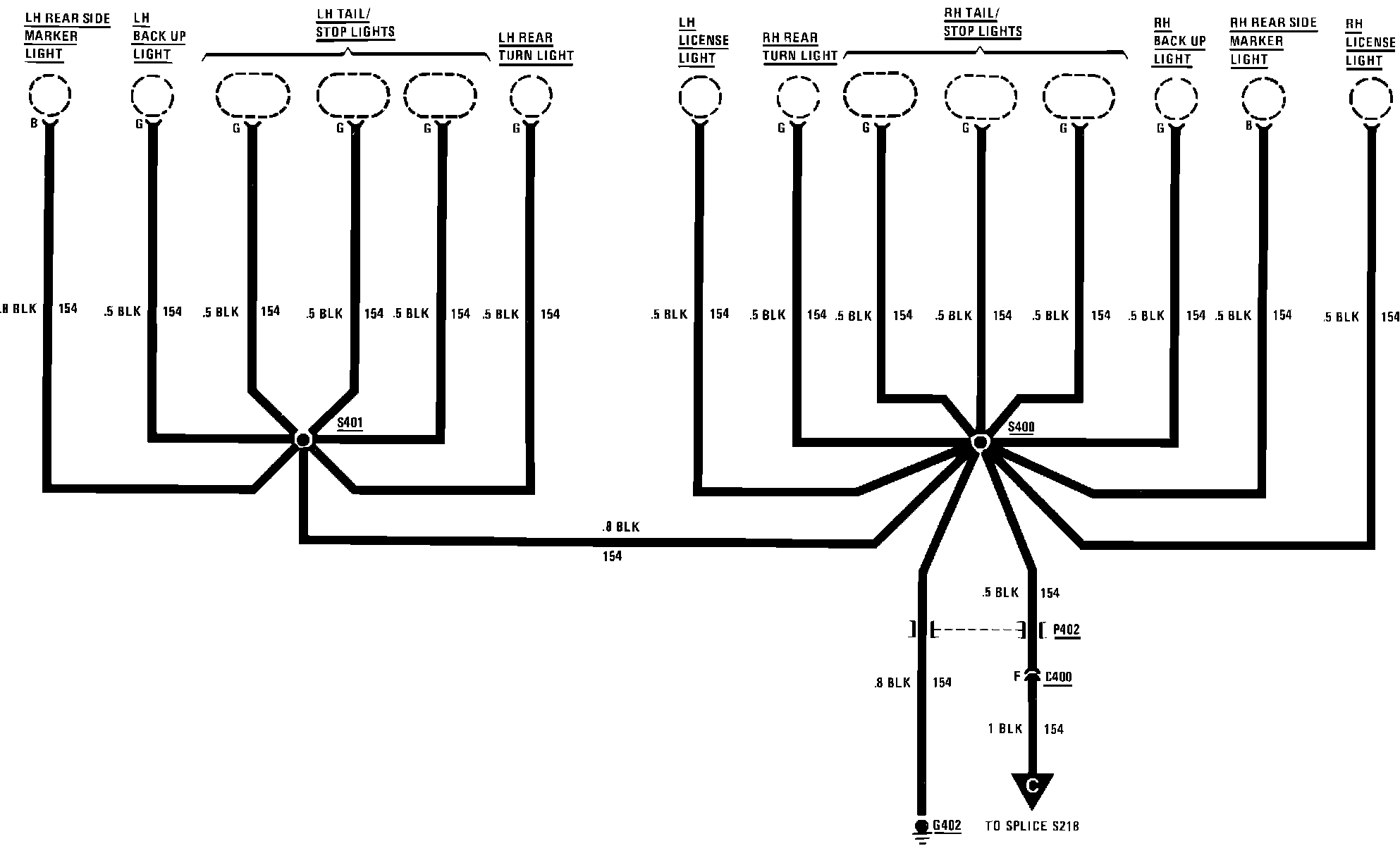

Ground Distribution. G201 & G402. SSE:
