Removal

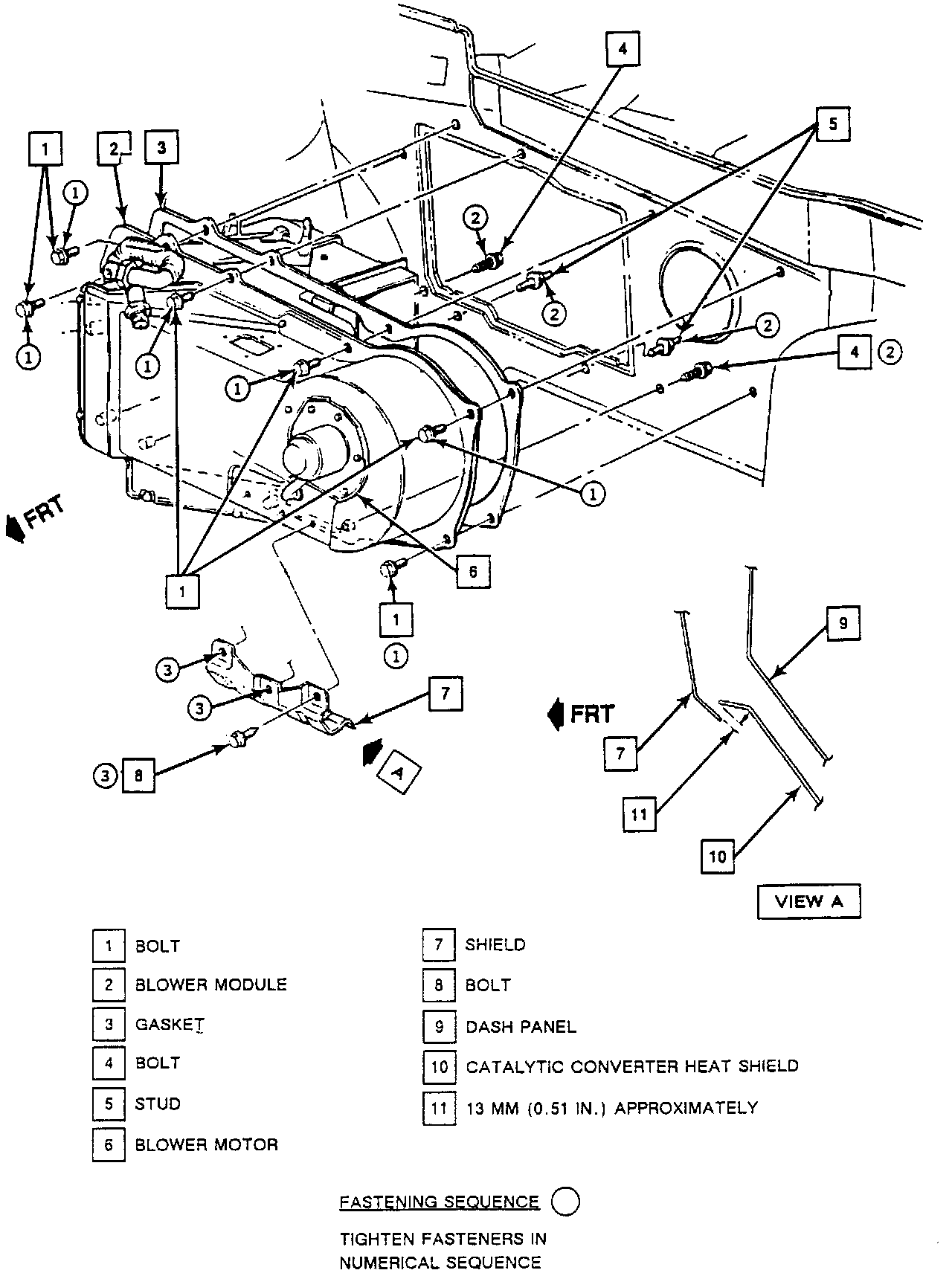

Blower Module Assembly:

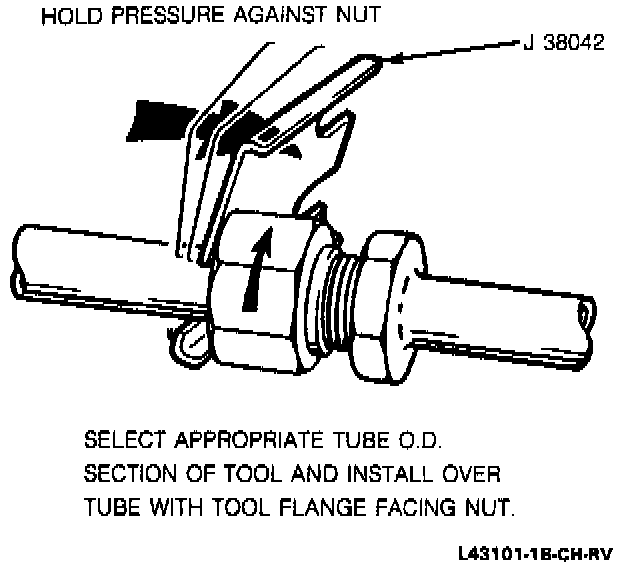

Dual O-Ring Joint And Tool:

TOOL REQUIRED

J 38042 Dual O-Ring Joint Separator (or equivalent)

CAUTION: Brazed fittings are on the condenser and evaporator. These fittings cannot be turned because the fitting is brazed to the pipe. It is important that the service technician recognize which fitting is to be turned and use backup wrenches. The brazed fitting not to be turned is always the same color as the pipe it is brazed t6 (unpainted or unplated aluminum).

REMOVE OR DISCONNECT

- Recover refrigerant from A/C system, Refer to Refrigerant Recovery and Recycling. Service and Repair

1. Accumulator.

2. Blower motor resistor.

3. Vacuum tank.

4. Evaporator tube.

5. Blower motor.

6. Brackets and heat shield from blower module assembly.

7. Cut blower module assembly insulation along indicated line.

8. Bolts attaching blower module assembly to front of dash (on driver's side of cut only).

9. Large piece of blower module assembly insulation.

10. Screws from evaporator cover.

11. Evaporator from vehicle.
