Pontiac
>>
1991
>>
Bonneville V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
LE Model
LE Model

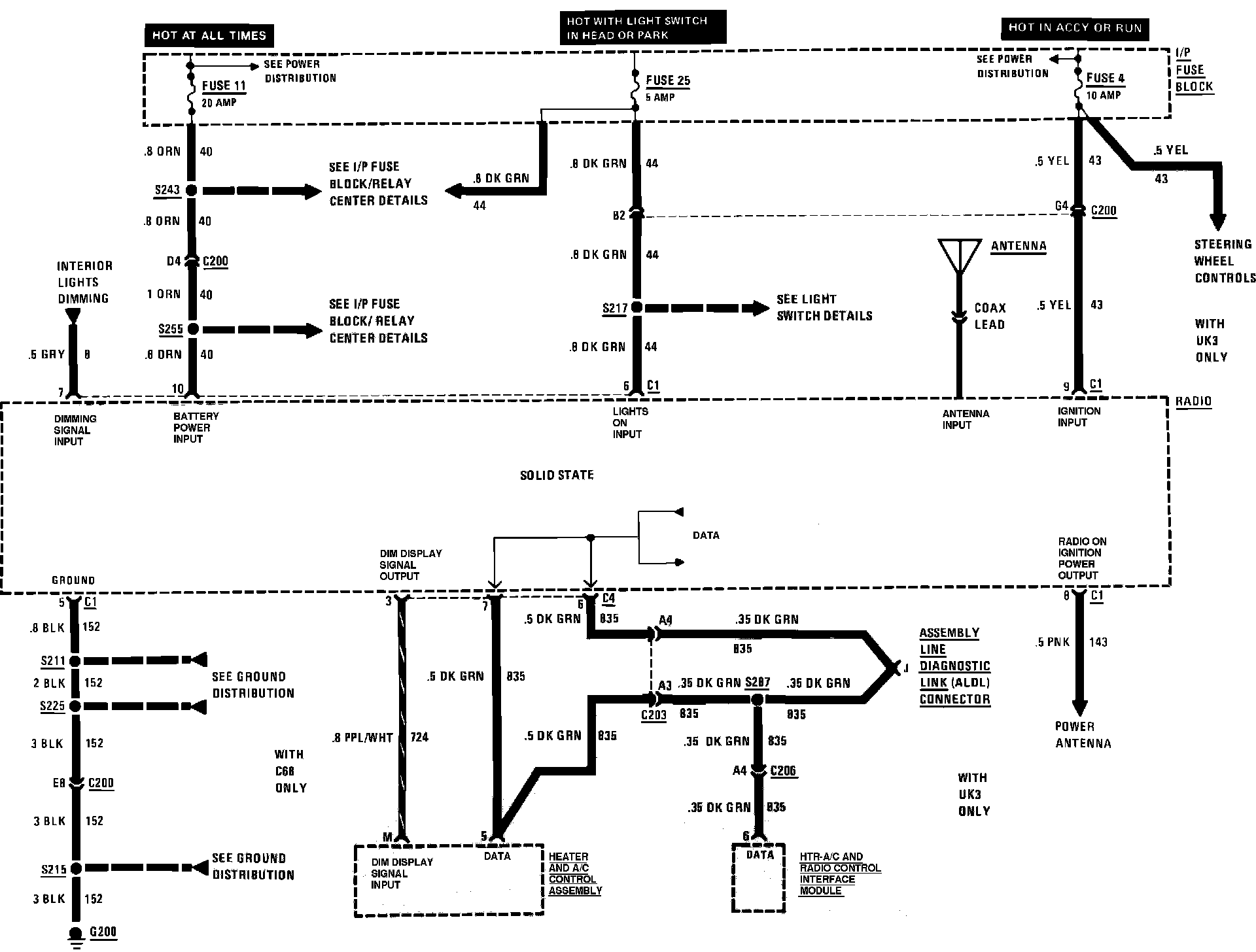

Radio. LE & SE:

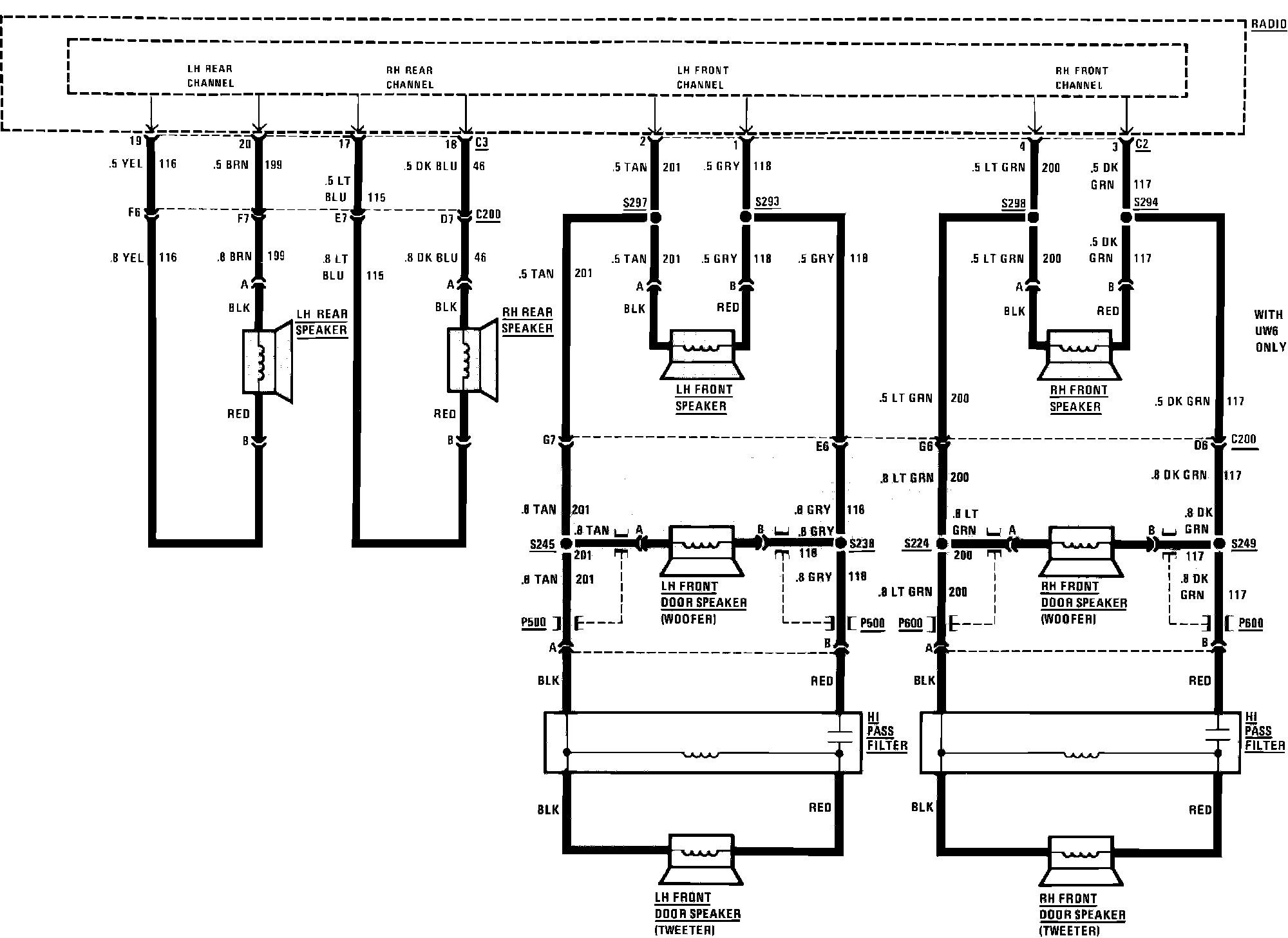

Radio. Less Daytime Running Lights. LE & SE:
