Pontiac
>>
1991
>>
6000 V6-191 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G106 and G112
G106 and G112

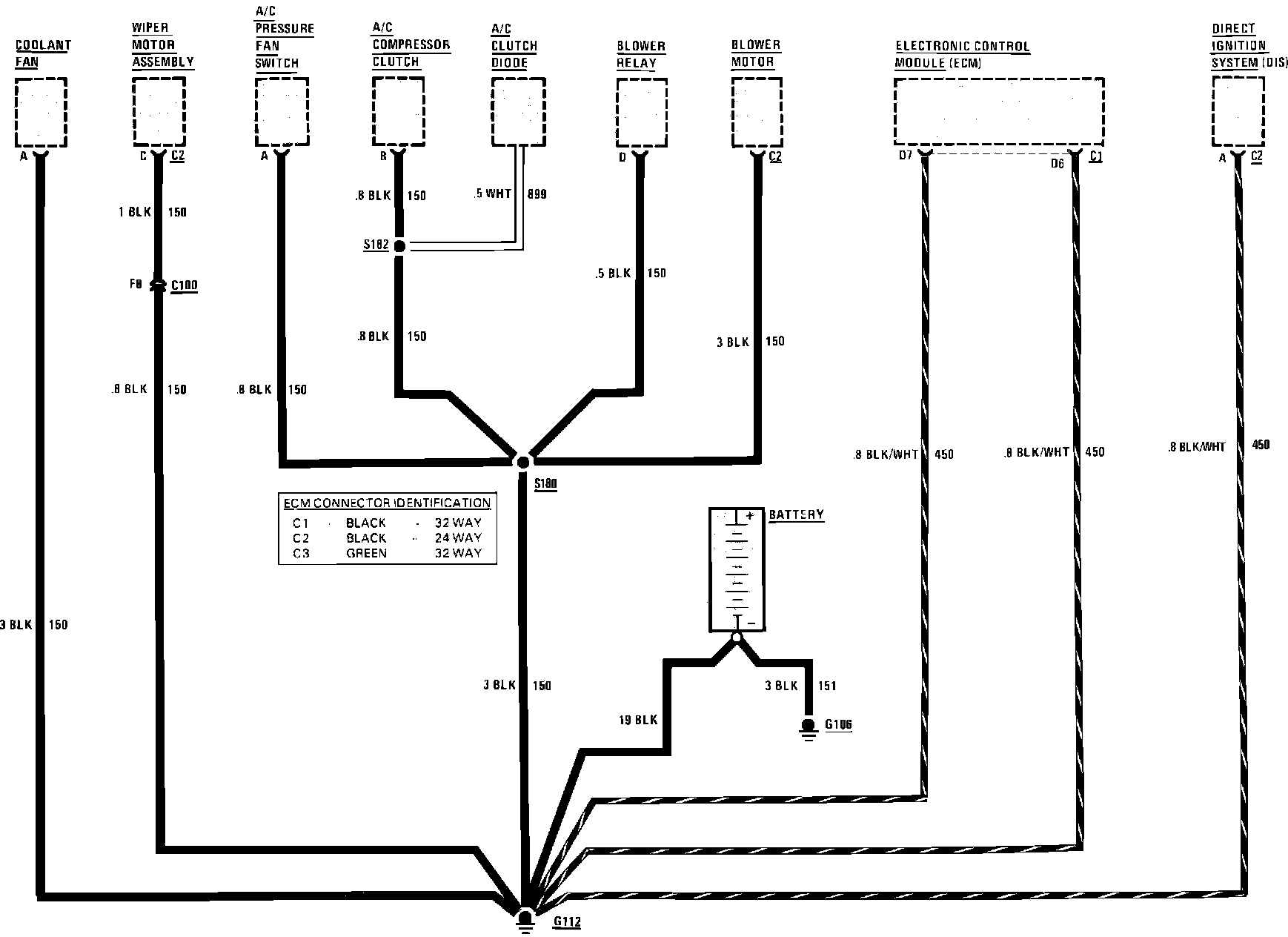

Ground Distribution: G106 & G112:
