Home >> Pontiac >> 1991 >> 6000 V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> Part 2 of 2

Part 2 of 2

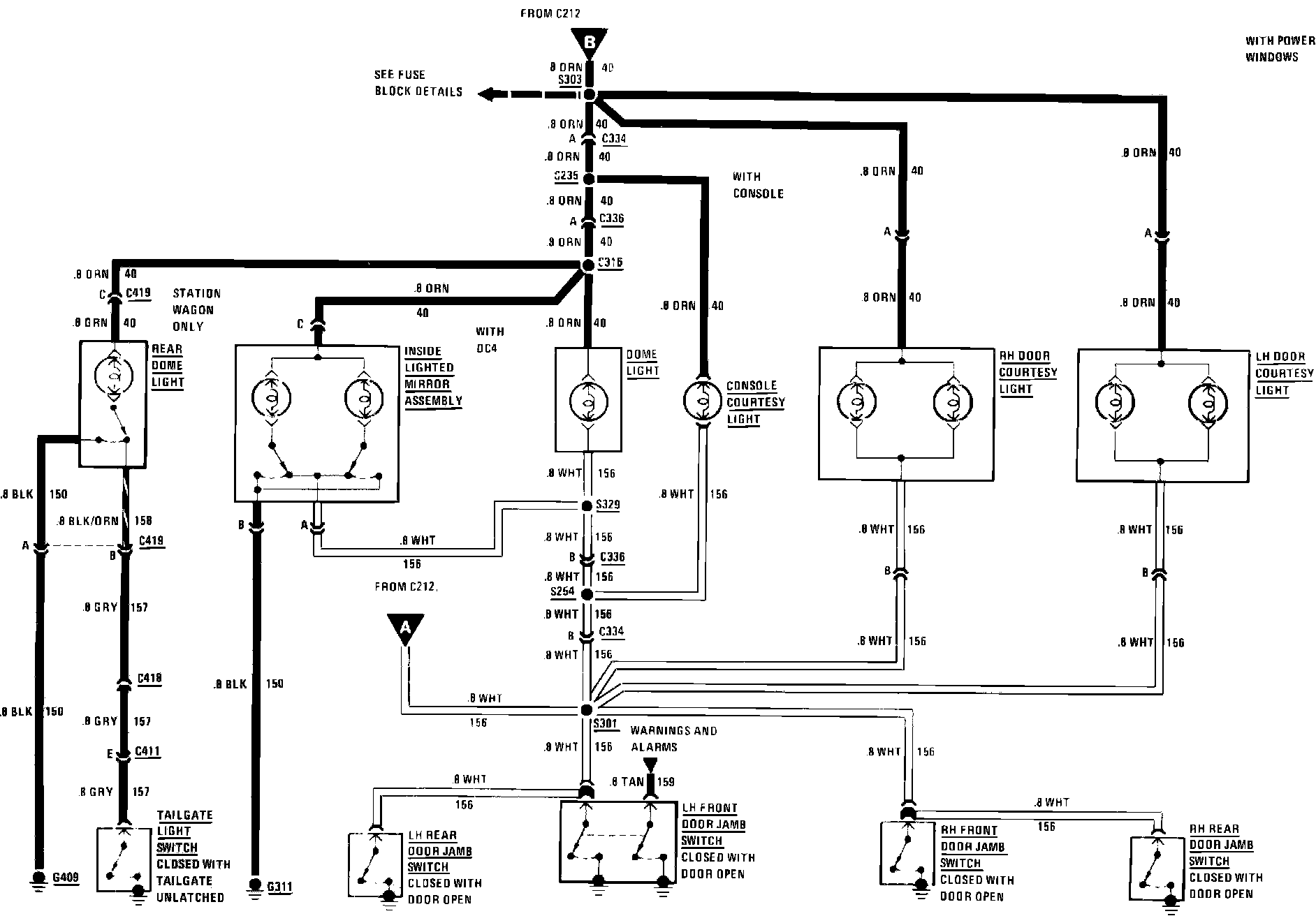

Interior Lamps: Courtesy, Cigar Lighter, Luggage, Instrument Panel:
