DTC 24

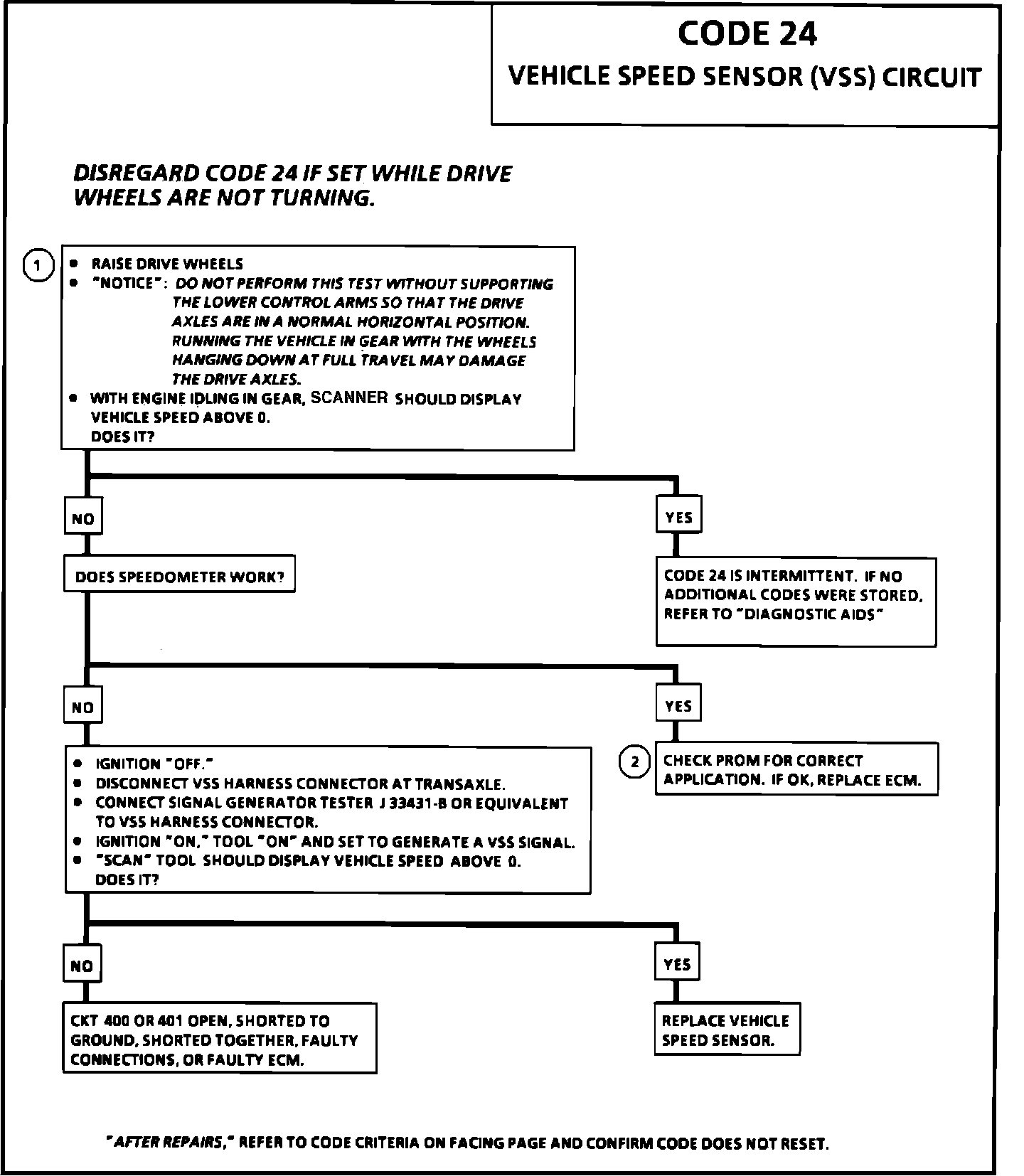

Code 24 Chart:

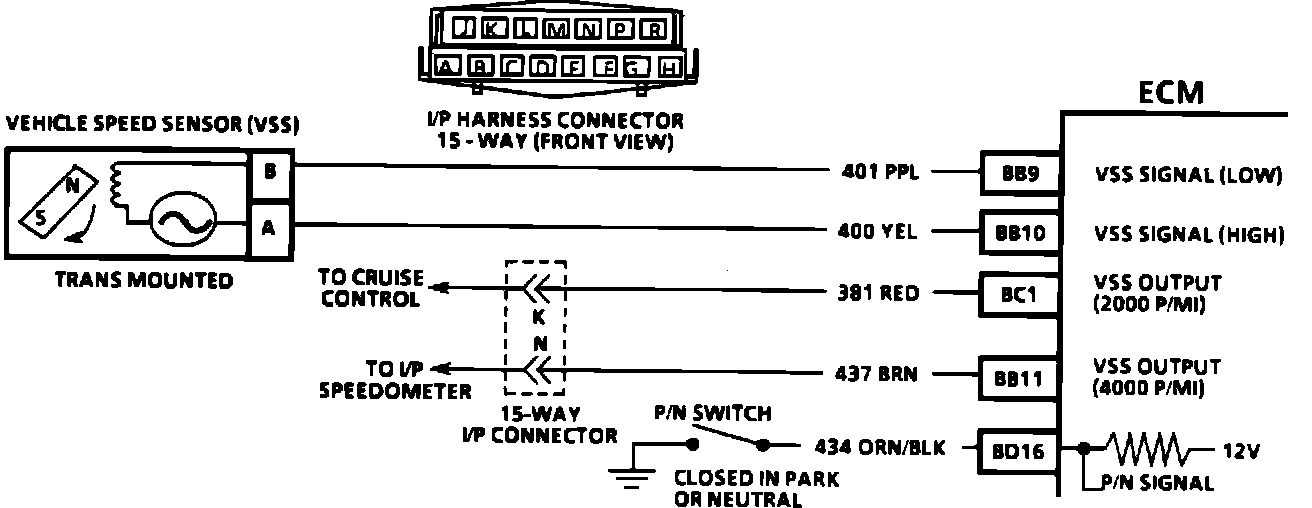

Wiring Diagram:

CIRCUIT DESCRIPTION:

Vehicle speed information is provided to the Electronic Control Module (ECM) by the Vehicle Speed Sensor (VSS) which is a Permanent Magnet (PM) Generator and it is mounted in the transaxle. The PM generator produces a pulsing voltage whenever vehicle speed is over about 3 mph. The AC voltage level and the number of pulses increases with vehicle speed. The ECM then converts the pulsing voltage to mph which is used for calculations, and the mph can be displayed with a "Scan" tool. The function of VSS buffer used in past model years has been incorporated into the ECM. The ECM then supplies the necessary signal for the instrument panel (4000 pulses per mile) for operating the speedometer and the odometer.

NOTE: Because of all the possible color code combinations used on electrical wiring diagrams, always refer to SCHEMATIC DIAGRAMS/ELECTRICAL AND ELECTRONIC WIRING DIAGRAMS/ECM CONNECTOR IDENTIFICATION for correct color code identification of circuit.

TEST DESCRIPTION: Numbers below refer to circled numbers on the diagnostic chart.

1. Code 24 will set if vehicle speed equals 0 mph when:

^ Engine speed is between 2200 and 4400 rpm
^ Vehicle speed 3 mph.
^ MAP load limit 30 kPa.
^ Not in park or neutral
^ All conditions met for 3 seconds

^ These conditions are met during a road load deceleration. Disregard Code 24 that sets when drive wheels are not turning.

^ The PM Generator only produces a signal if drive wheels are turning greater than 3 mph.

2. CKTs 400, 401 and 437 are OK if the speedometer works properly. Code 24 is being caused by a faulty ECM, faulty Mem-Cal or an incorrect Mem-Cal.


DIAGNOSTIC AIDS:

^ "Scan" should indicate a vehicle speed whenever the drive wheels are turning greater than 3 mph. A problem in CKT 938 will not affect the VSS input or the readings on a "Scan".

^ Check CKT 400 and 401 for proper connections to be sure there clean and tight and the harness is routed correctly. Refer to TESTING PROCEDURES/DIAGNOSIS BY SYMPTOM/INTERMITTENTS.

^ A faulty or misadjusted park/neutral switch can result in a false Code 24. Use a "Scan" and check for proper signal while in drive (3T40) or overdrive (4T60). Refer to CHART C-1A for P/N switch diagnosis check.
