Lateral Stabilizer Rod: Service and Repair

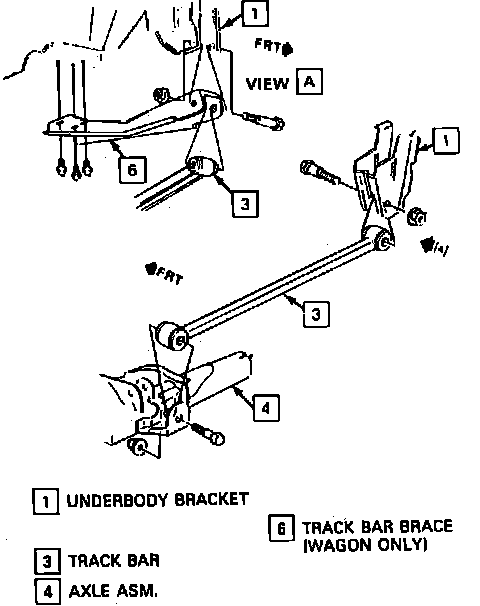

Fig. 6 Track Bar Installation. Except AWD Models:

1. Raise rear of vehicle and support rear axle using a jack.
2. Remove nut and bolt attaching track bar to axle housing and underbody, then remove track bar, Fig. 6.
3. Reverse procedure to install, torquing bolts/nuts to specifications.
