Home
>>
Pontiac
>>
1991
>>
6000 L4-151 2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Ignition
Ignition

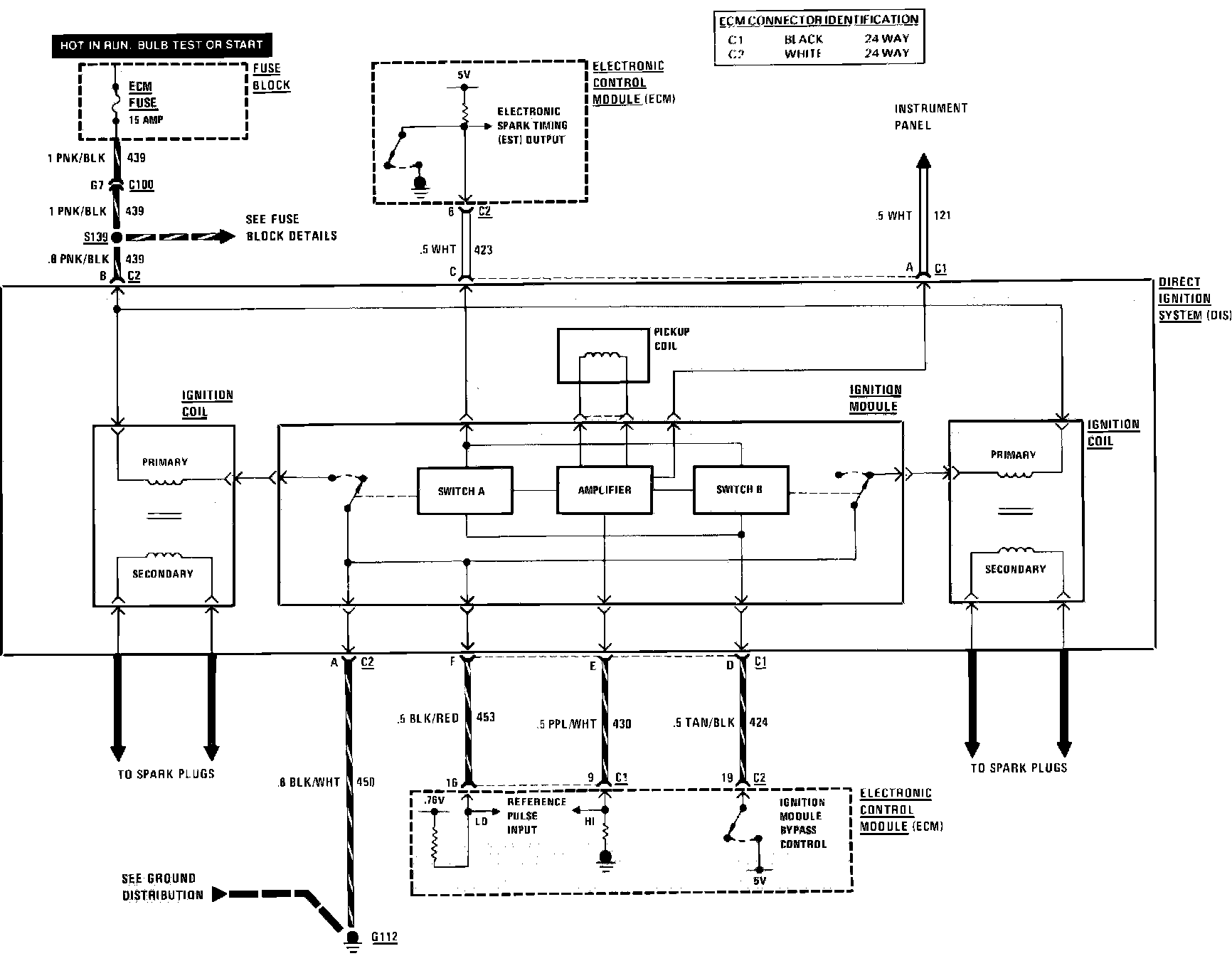

Electronic Fuel Injection: Ignition:
