Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G403 and G410
G403 and G410

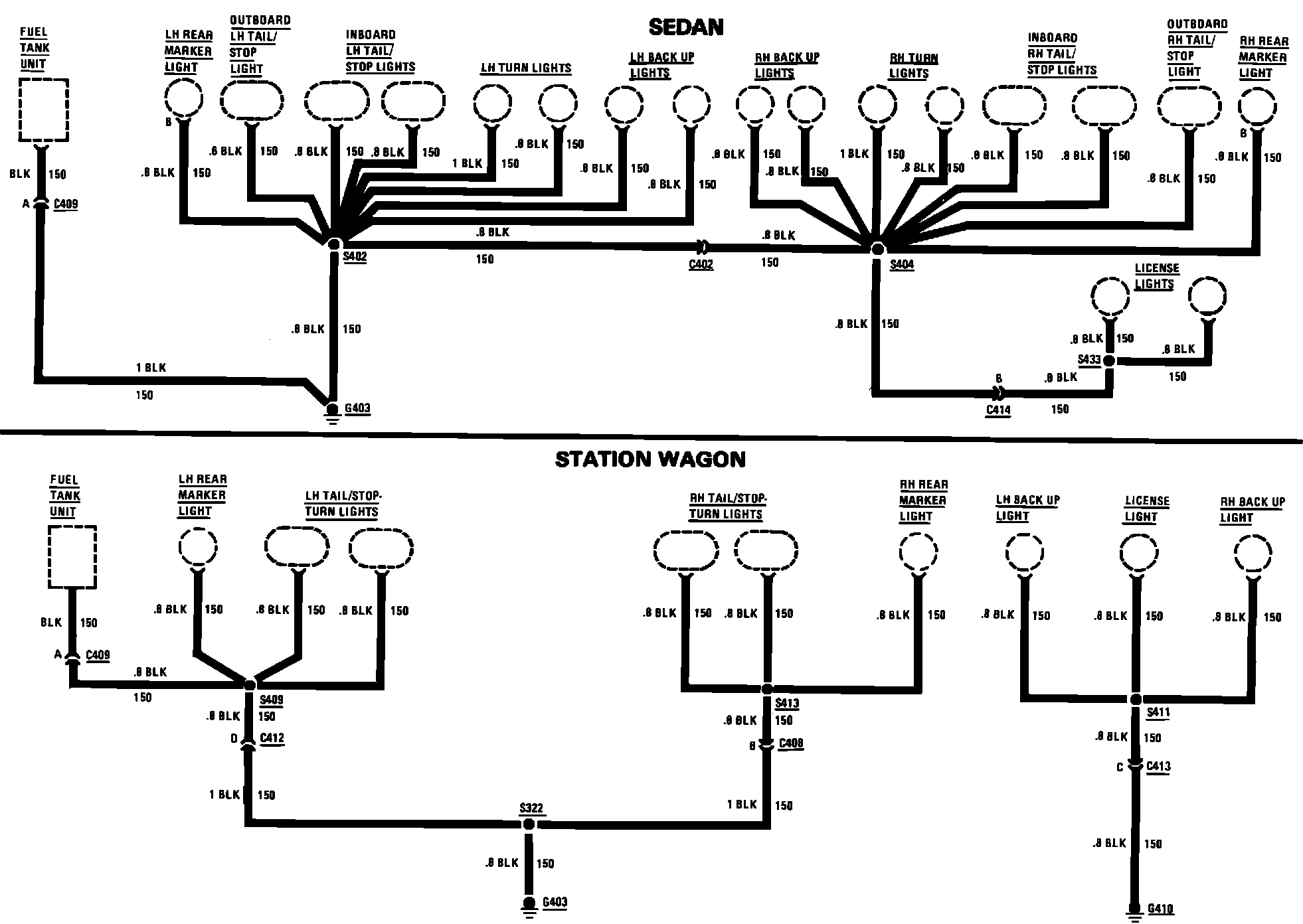

Ground Distribution. G403 & G410:
