Intake Manifold: Specifications

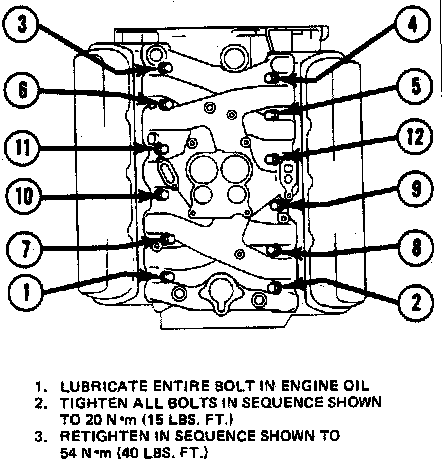

Intake Manifold Torque Specification and Sequence






Torque Specification 54 Nm (40 ft lb)

NOTE: Clean and dip entire bolt in engine oil before tightening to obtain a correct torque reading.
