Throttle Valve Cable/Linkage: Adjustments

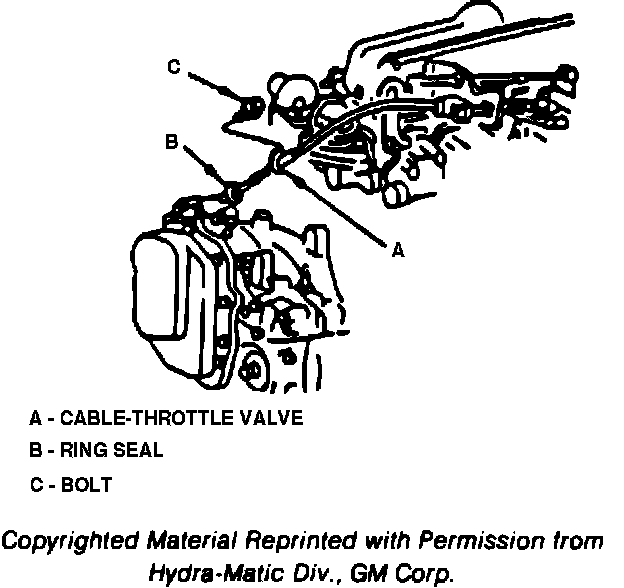

Fig. 10 T.V. Cable At Transaxle. LeMans:

1. Remove air cleaner assembly.
2. Remove spring clip to release cable tension, Fig. 10.
3. Depress accelerator cable until it contacts kickdown switch, then install cable spring clip. With accelerator depressed, ensure throttle valve is fully open.
