Home
>>
Pontiac
>>
1989
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Instrument Panel Grounds
Instrument Panel Grounds

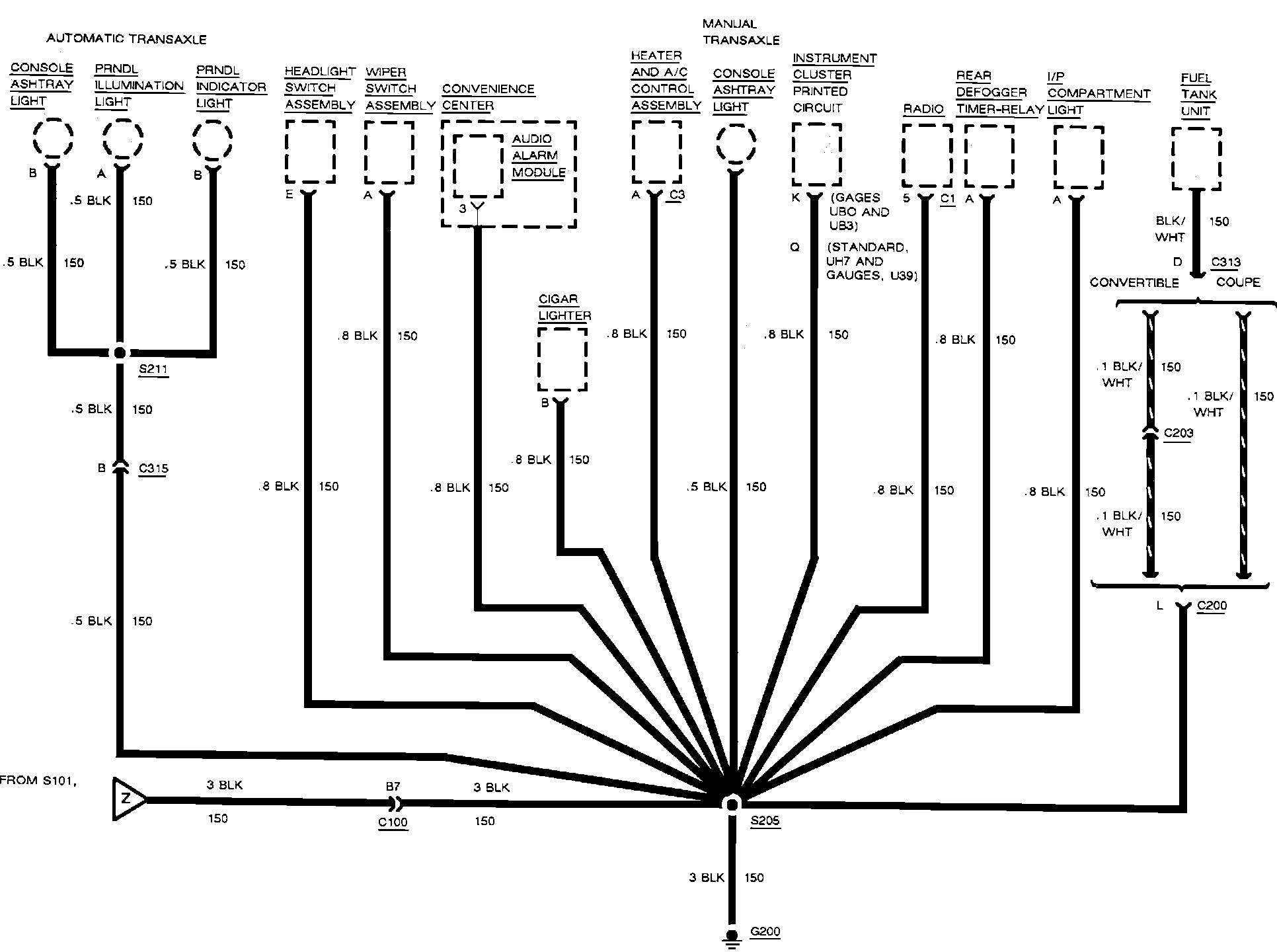

Ground Distribution (G200 Instrument Panel Grounds):
