Pontiac
>>
1989
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Fluid Diagrams
Fluid Diagrams

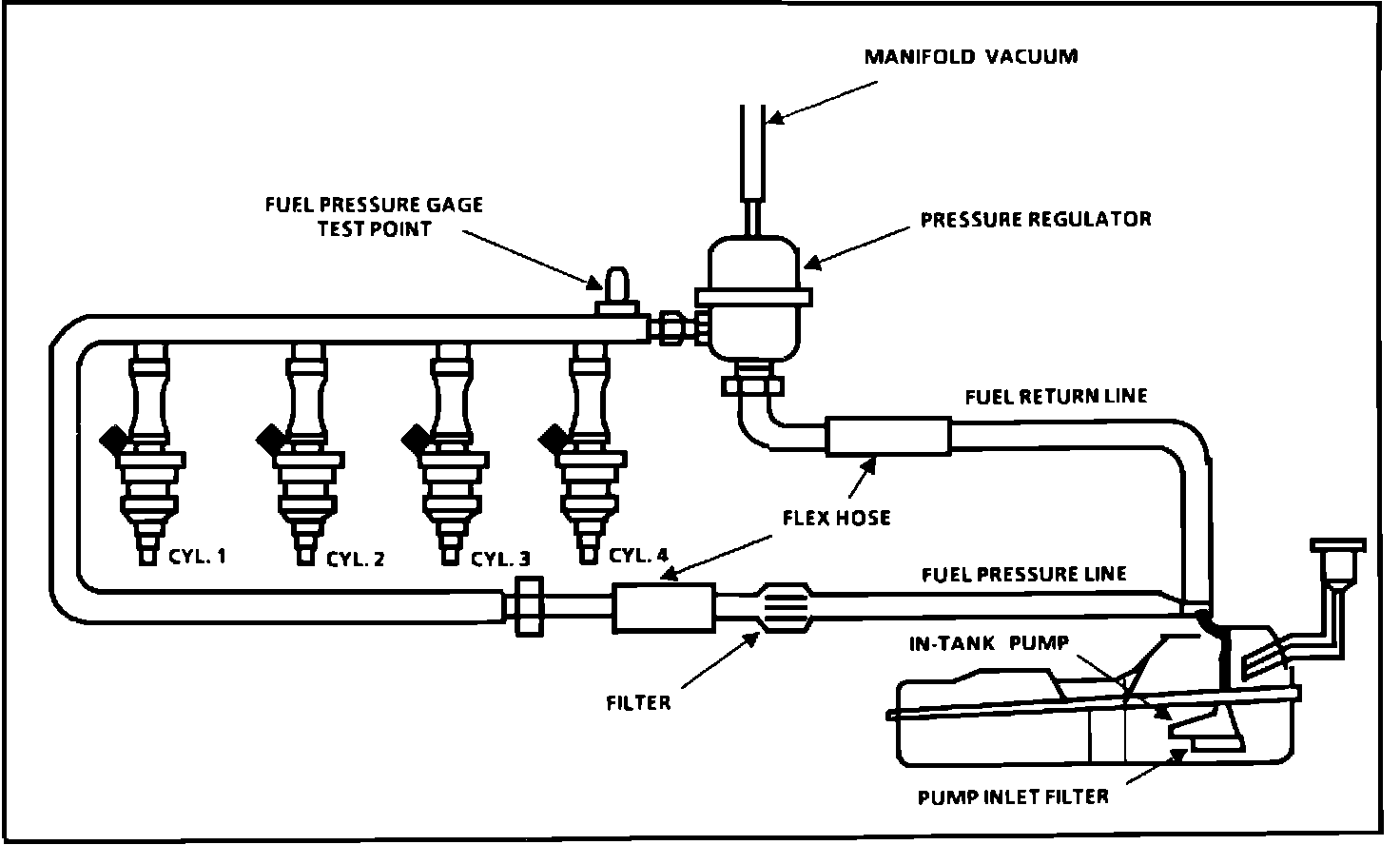

Fuel System Circuit Diagram:
