Pontiac
>>
1989
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Vehicle Speed Sensor (VSS)
>>
Without Turbo
Without Turbo

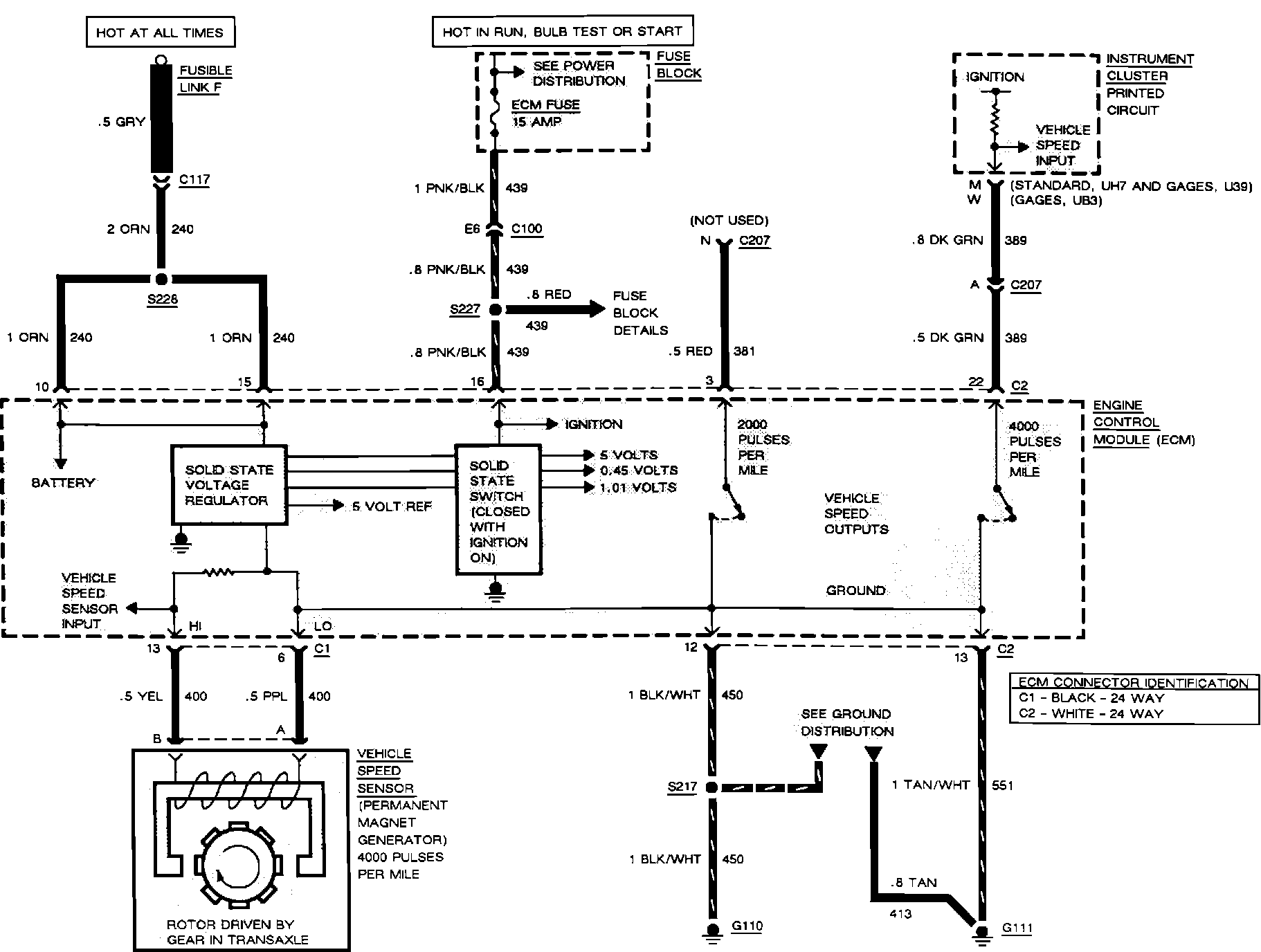

Vehicle Speed Sensor (Without Turbo):
