Pontiac
>>
1989
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Radio and Wiper
Radio and Wiper

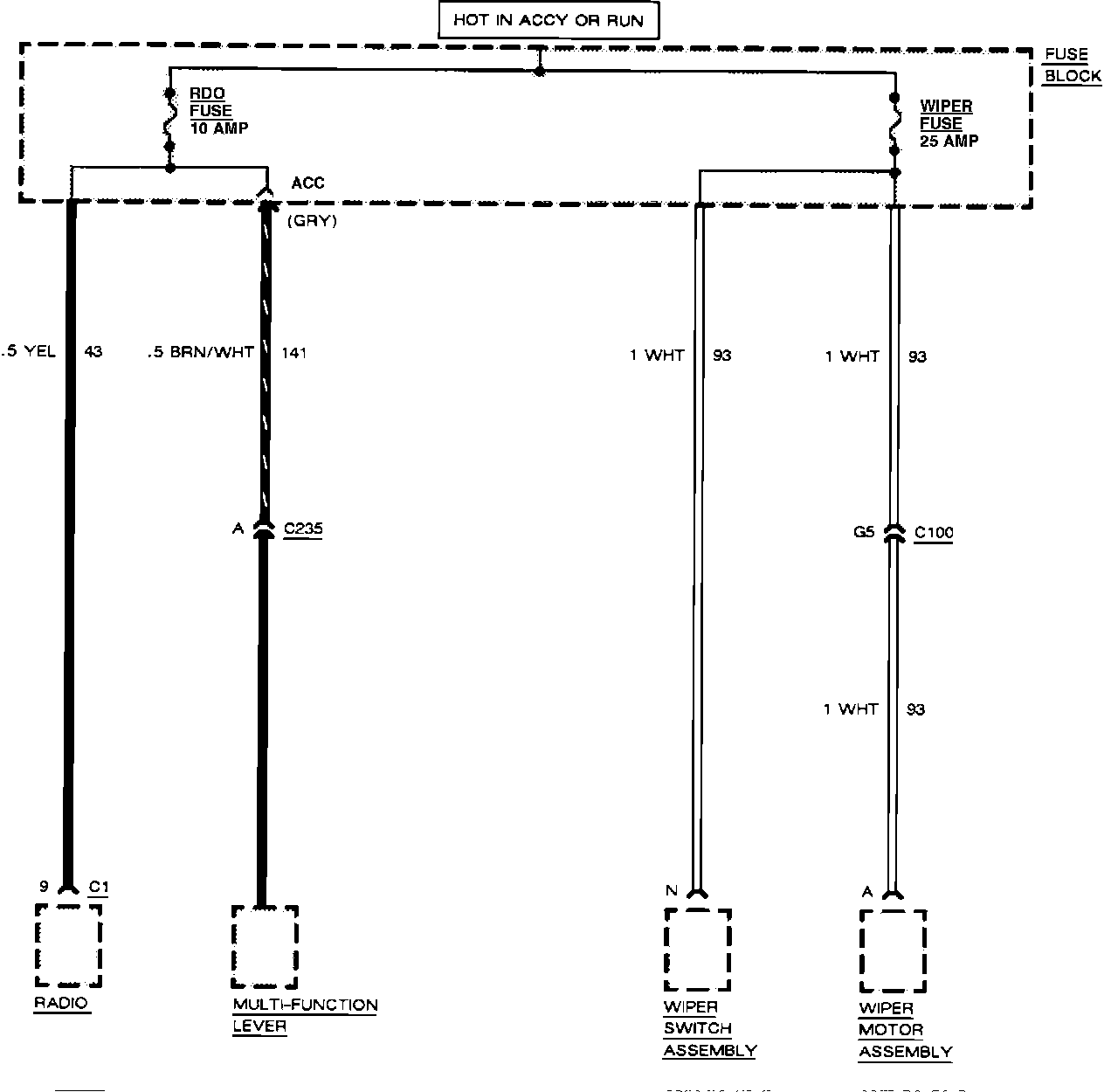

Fuse Block Details (Radio Fuse & Wiper Fuse):
