Alt Fan Fuse, HTR-A/C Fuse
Alt Fan Fuse, HTR-A/C Fuse

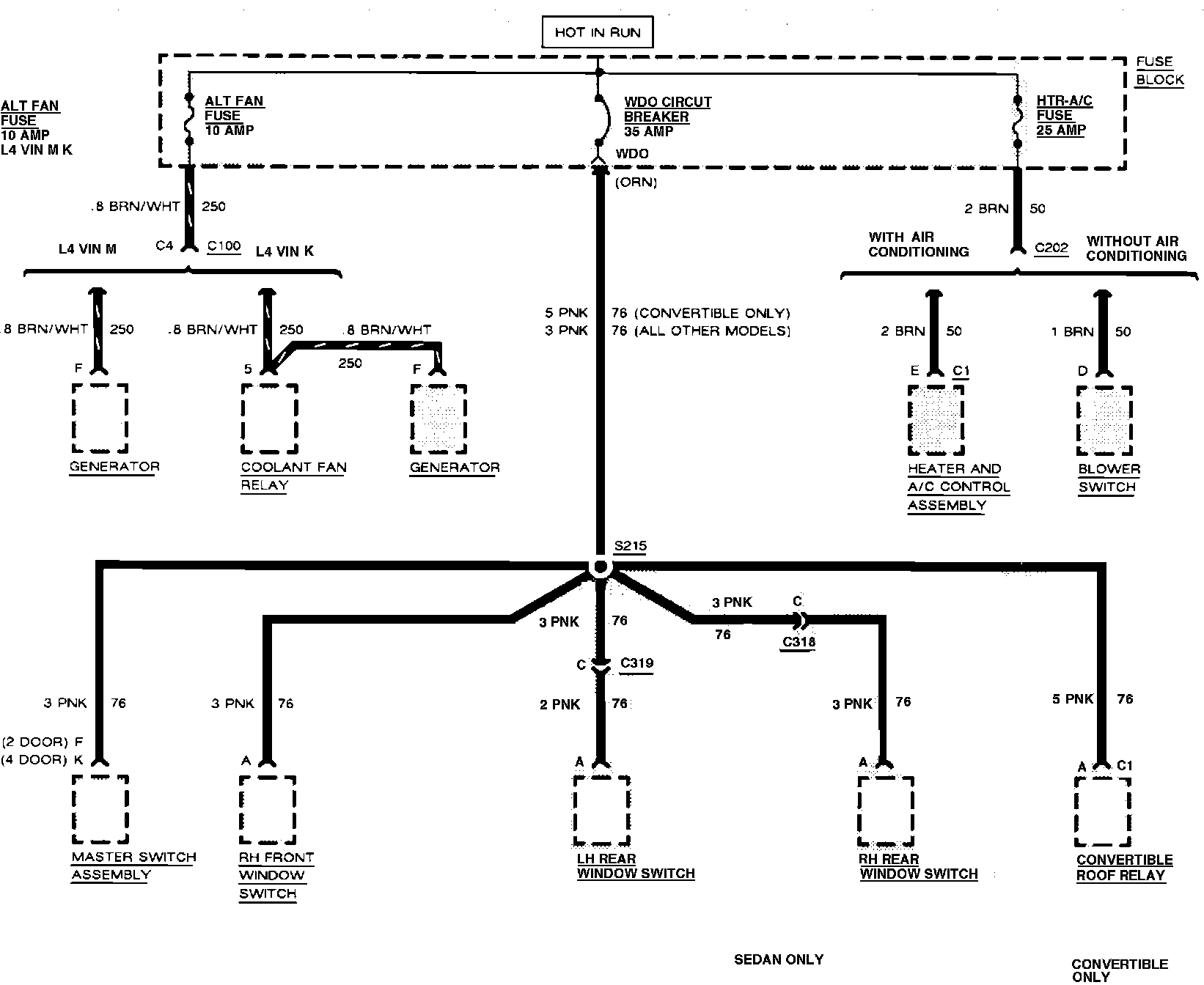

Fuse Block Details (ALT Fan Fuse, HTR-A/C Fuse & Power WDO Circuit Breaker):
