Pontiac
>>
1989
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Vehicle Speed Sensor (VSS)
>>
With Turbo
With Turbo

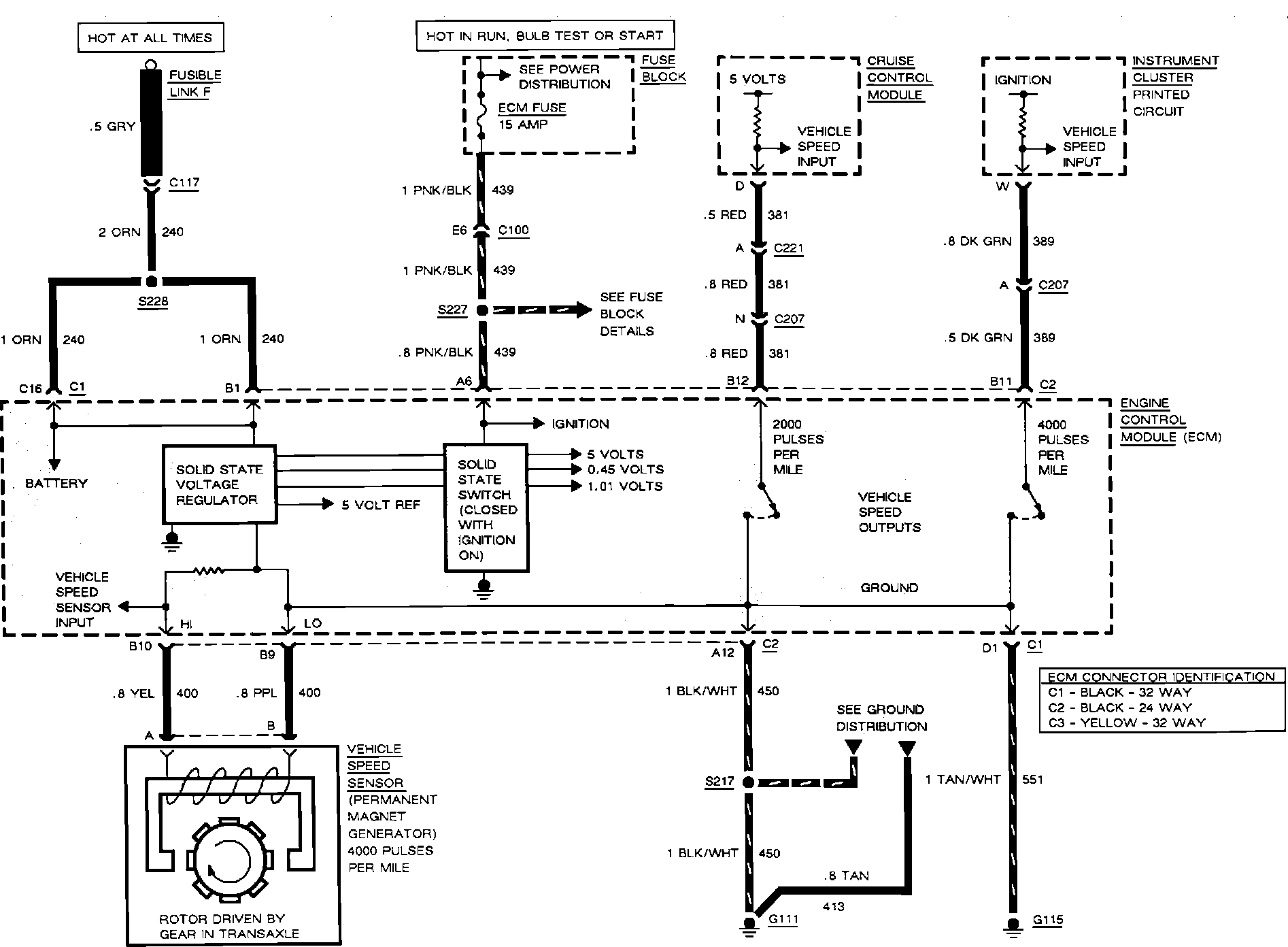

Vehicle Speed Sensor (Turbo):
