Pontiac
>>
1989
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Headlamp Switch
>>
Coupe/Convertible
Coupe/Convertible

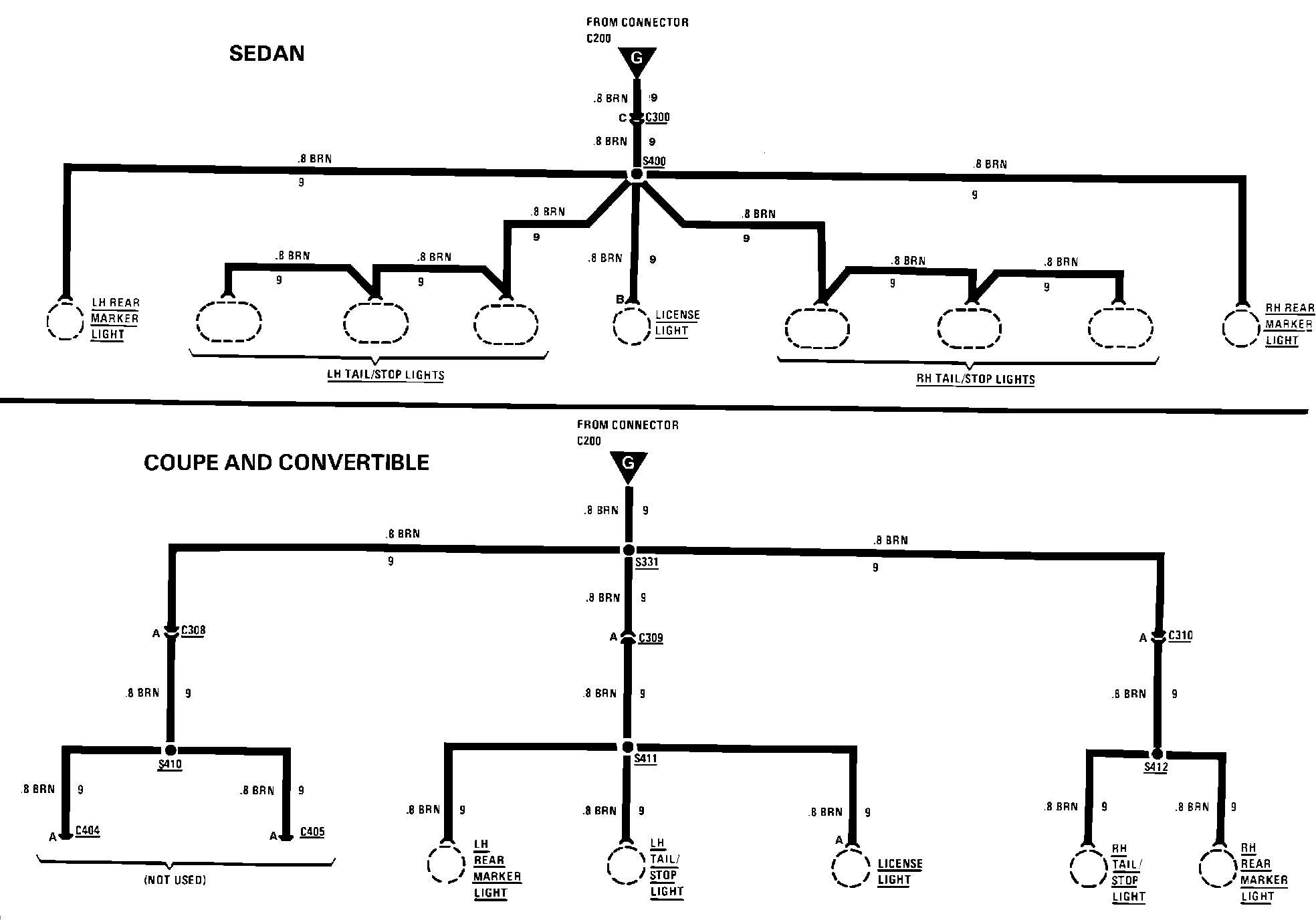

Light Switch Details Wiring Circuit (Part 2 Of 3):
