Pontiac
>>
1989
>>
Grand Prix V6-191 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G303
G303

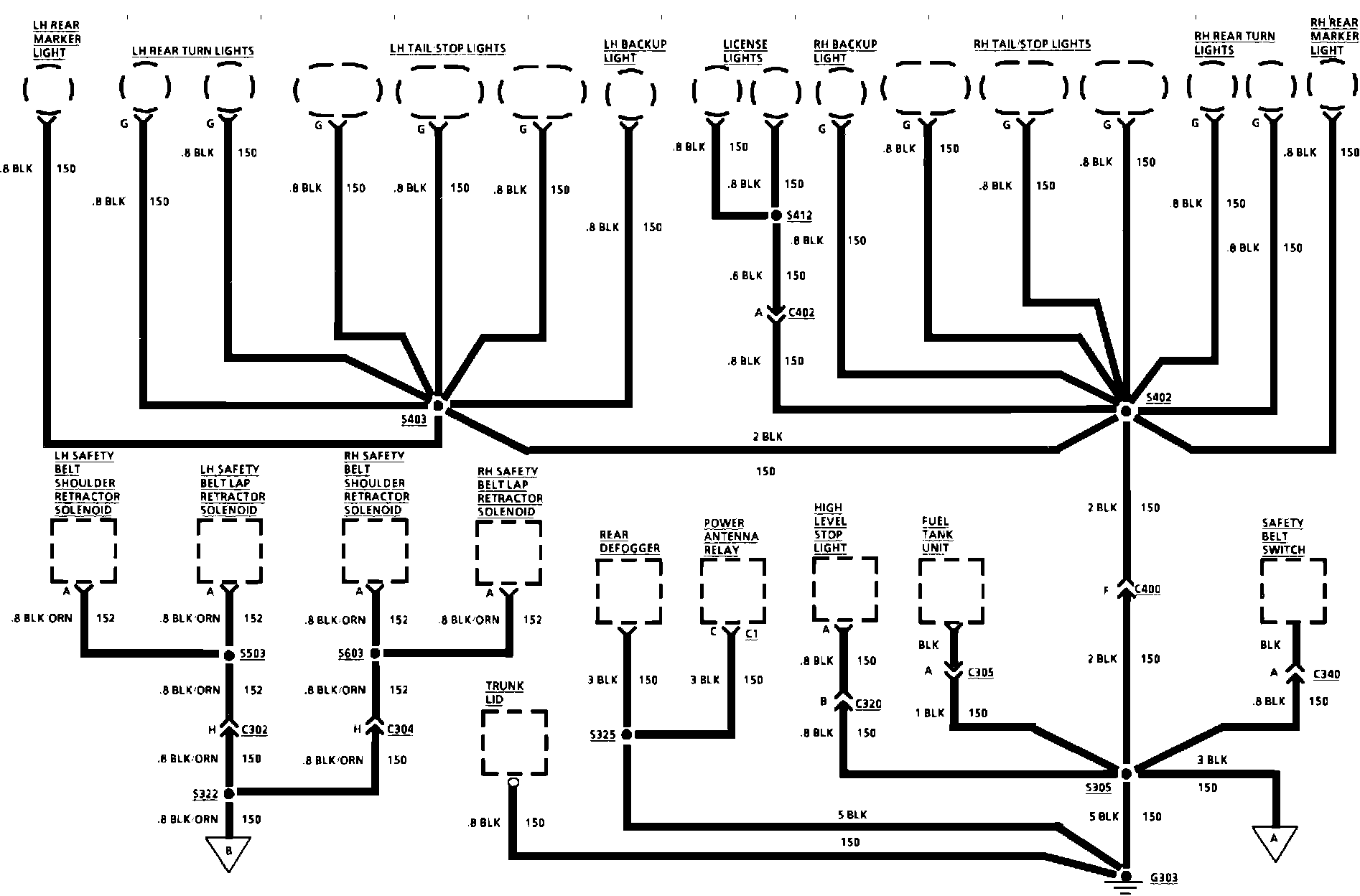

Ground Distribution G103, G111 & G303:
