Courtesy Lamp
>>
Illuminated Entry
Illuminated Entry

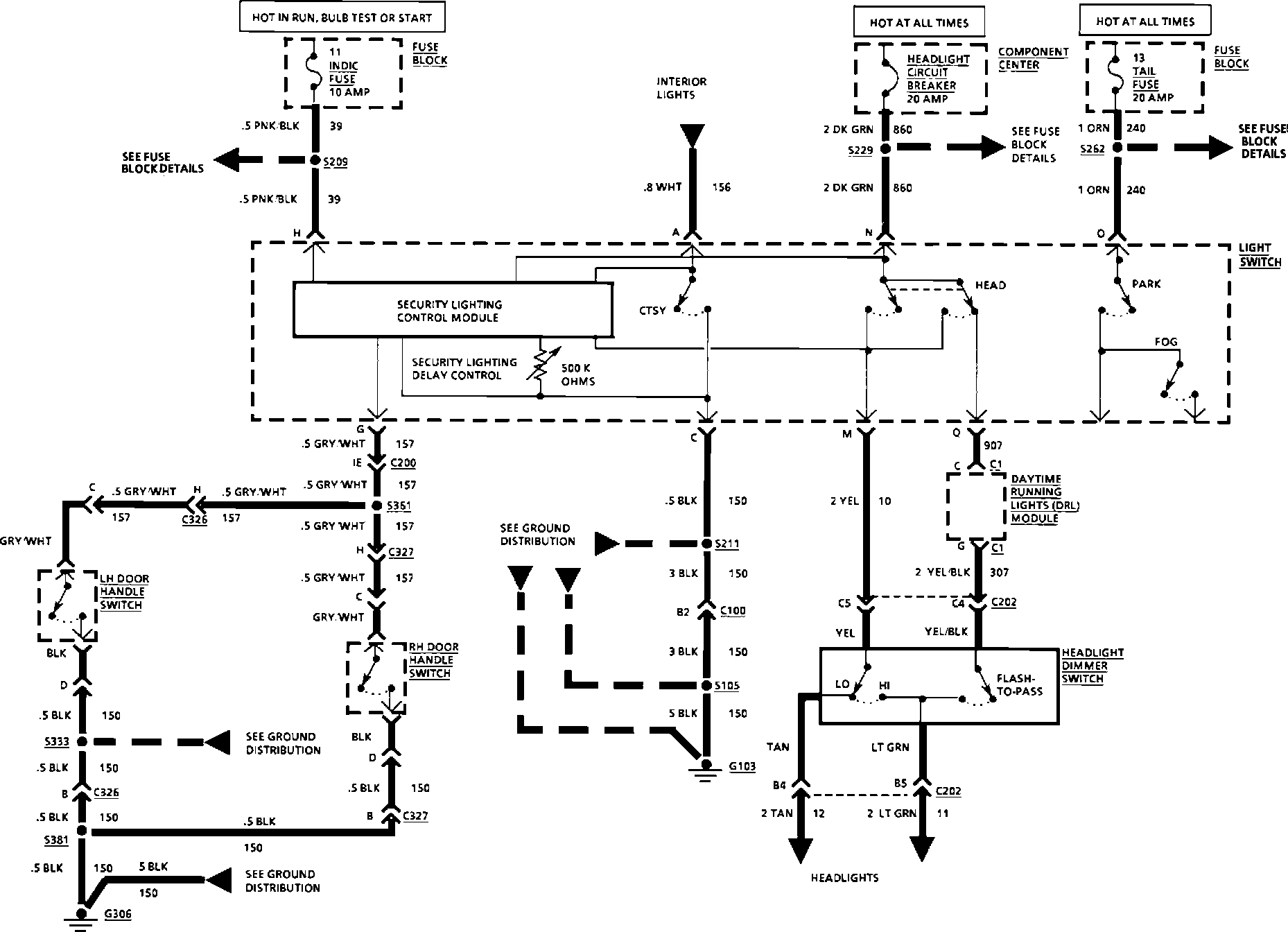

Interior Lights (Illuminated Entry & Security):
