Engine Controls - Revised Chart C-3, Canister Purge

89pontiac15

Bulletin Number: 89-6-61
Reference Number: 916518
Publish Date: 7/89
Subject: SERVICE MANUAL UPDATE-SECTION 6E3-DRIVEABILITY AND EMISSIONS REVISED CHART C-3

Models

Affected: 1988-1989 GRAND AM 2.3L (VIN A, D)

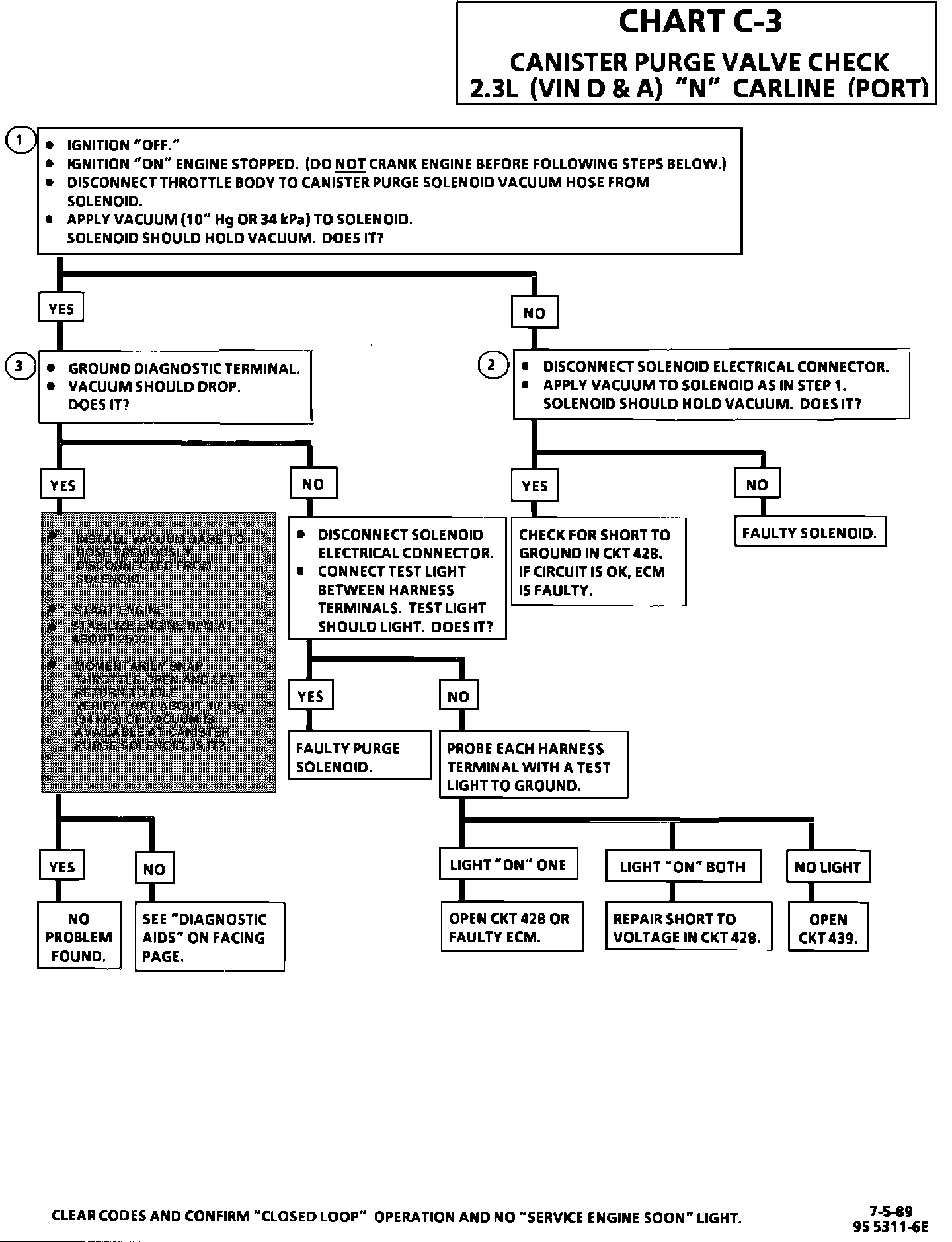

This bulletin serves to update Chart C-3, "Canister Purge Valve Check" in Section 6E3, "Driveability And Emissions" in the 1988 through 1989 Service Manuals with 2.3L Grand Am models (VIN D and A) applications.
