Pontiac
>>
1989
>>
Grand AM L4-121 2.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
System Check Table
System Check Table

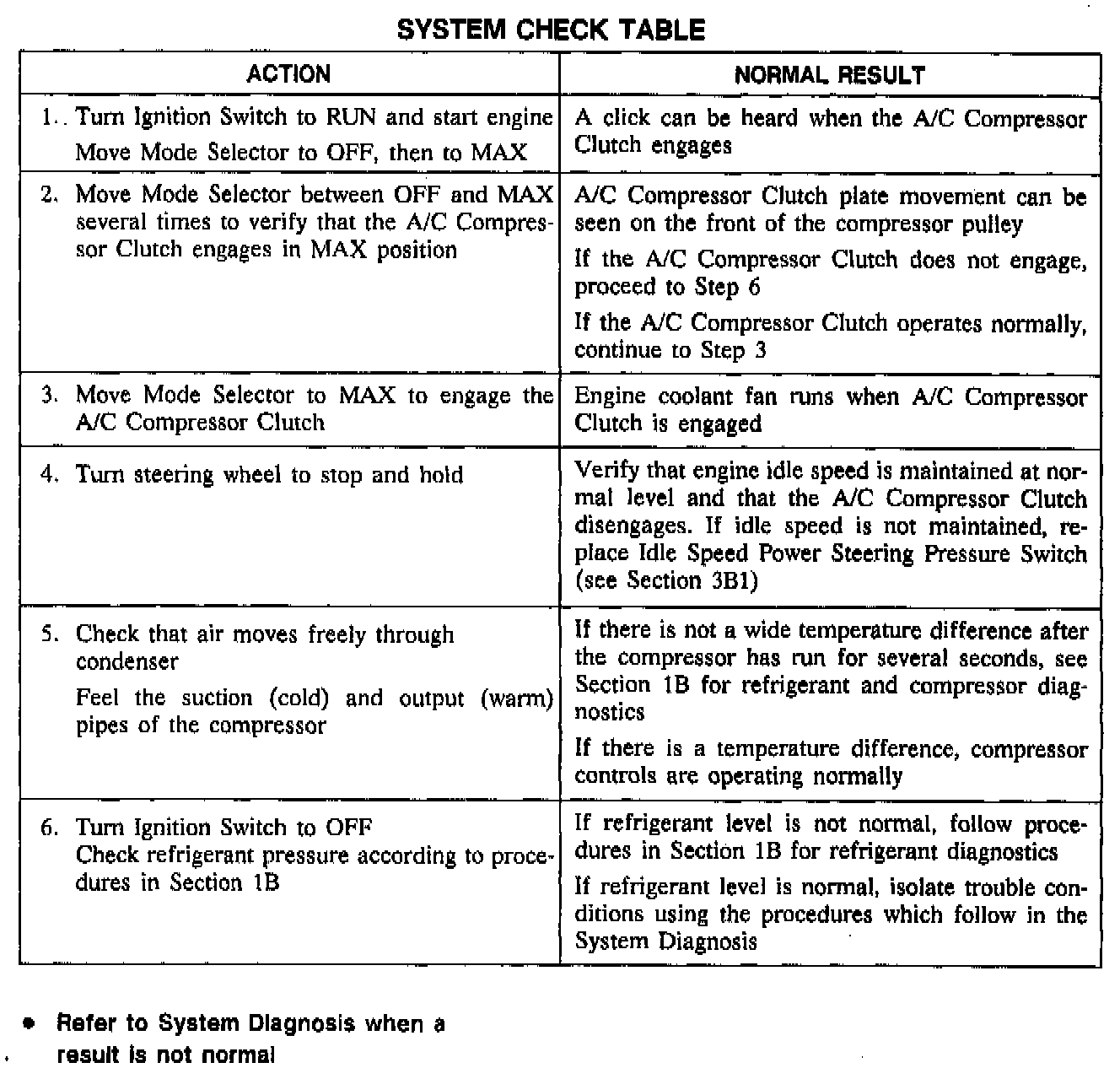

A/C Compressor Controls System Check Table:
