Without Air Conditioning

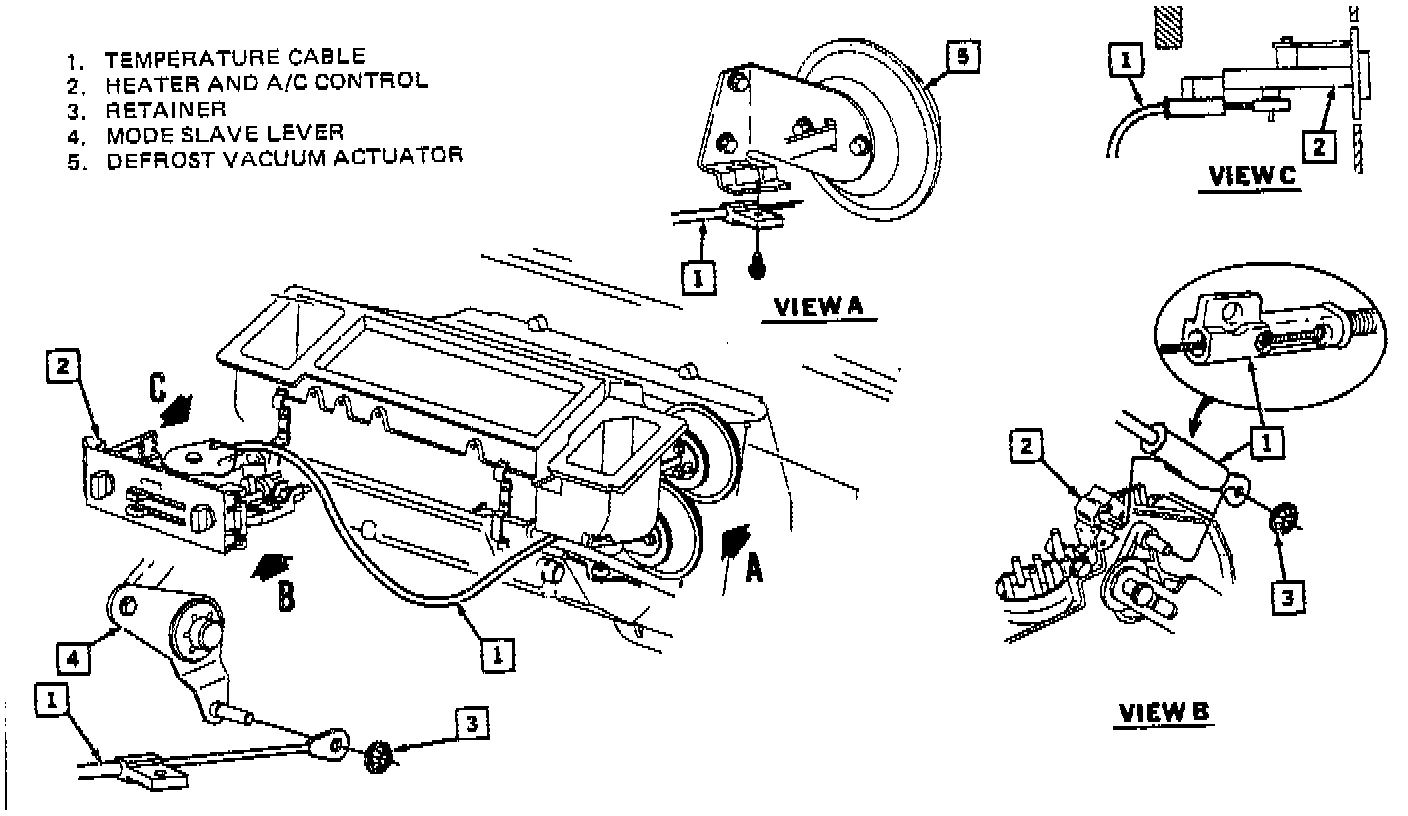

Temperature Control Cable Routing:

REMOVE OR DISCONNECT
1. Lower sound insulator panel.
2. Console extension.
3. Control assembly.
4. Cable at control assembly.
5. Cable at electrical connectors.
6. Temperature control cable.

INSTALL OR CONNECT
1. Temperature control cable.
2. Cable at electrical connectors.
3. Cable at control assembly.
4. Control assembly.
5. Control extension.
6. Lower sound insulator panel.
