Home
>>
Pontiac
>>
1989
>>
Grand AM L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Horn
Horn

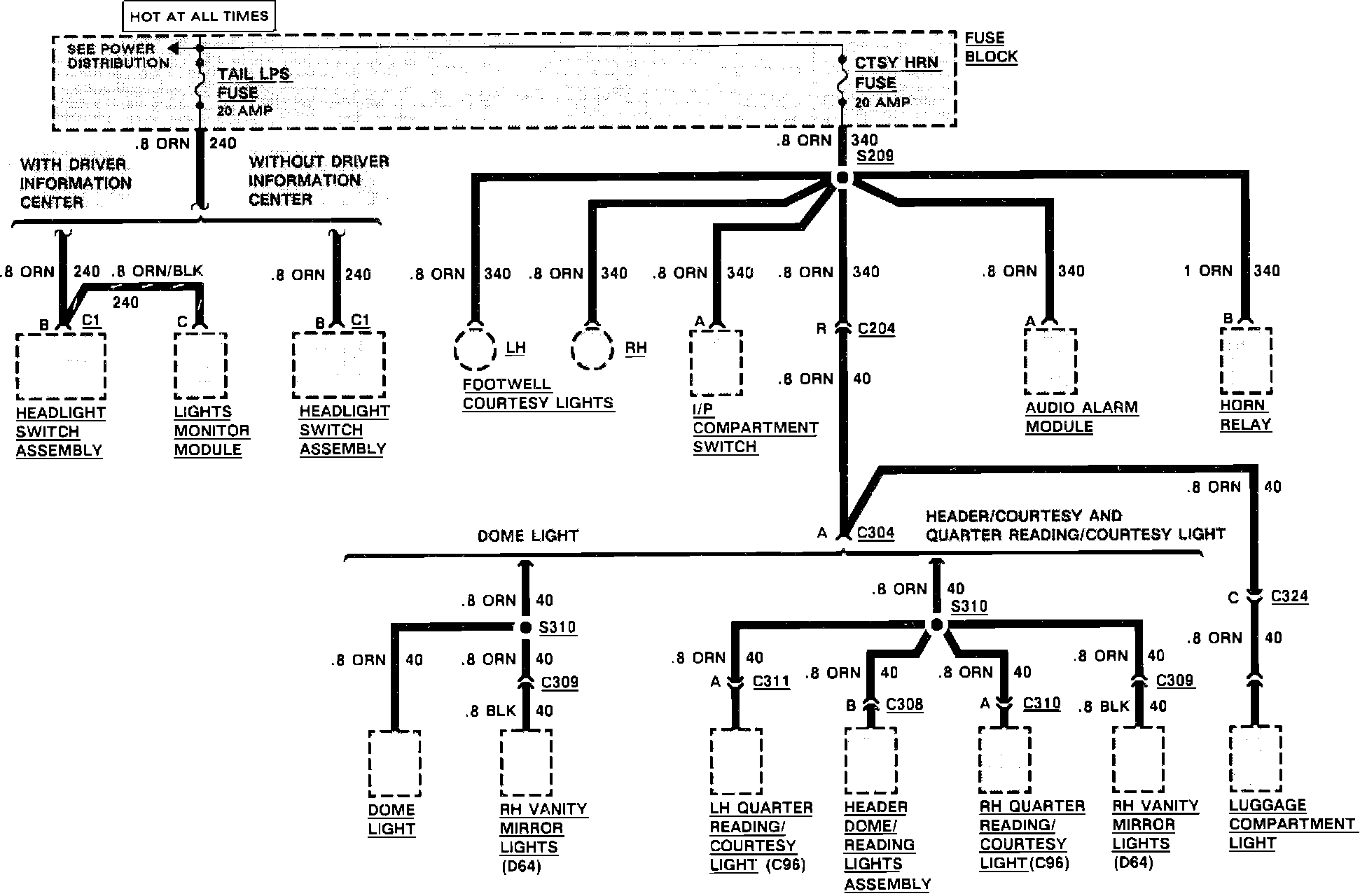

Fuse Block Details (Courtesy Lamps, Horn & tail Lamps):
