Pontiac
>>
1989
>>
Grand AM L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
System Diagram
>>
With Driver Information Center
With Driver Information Center

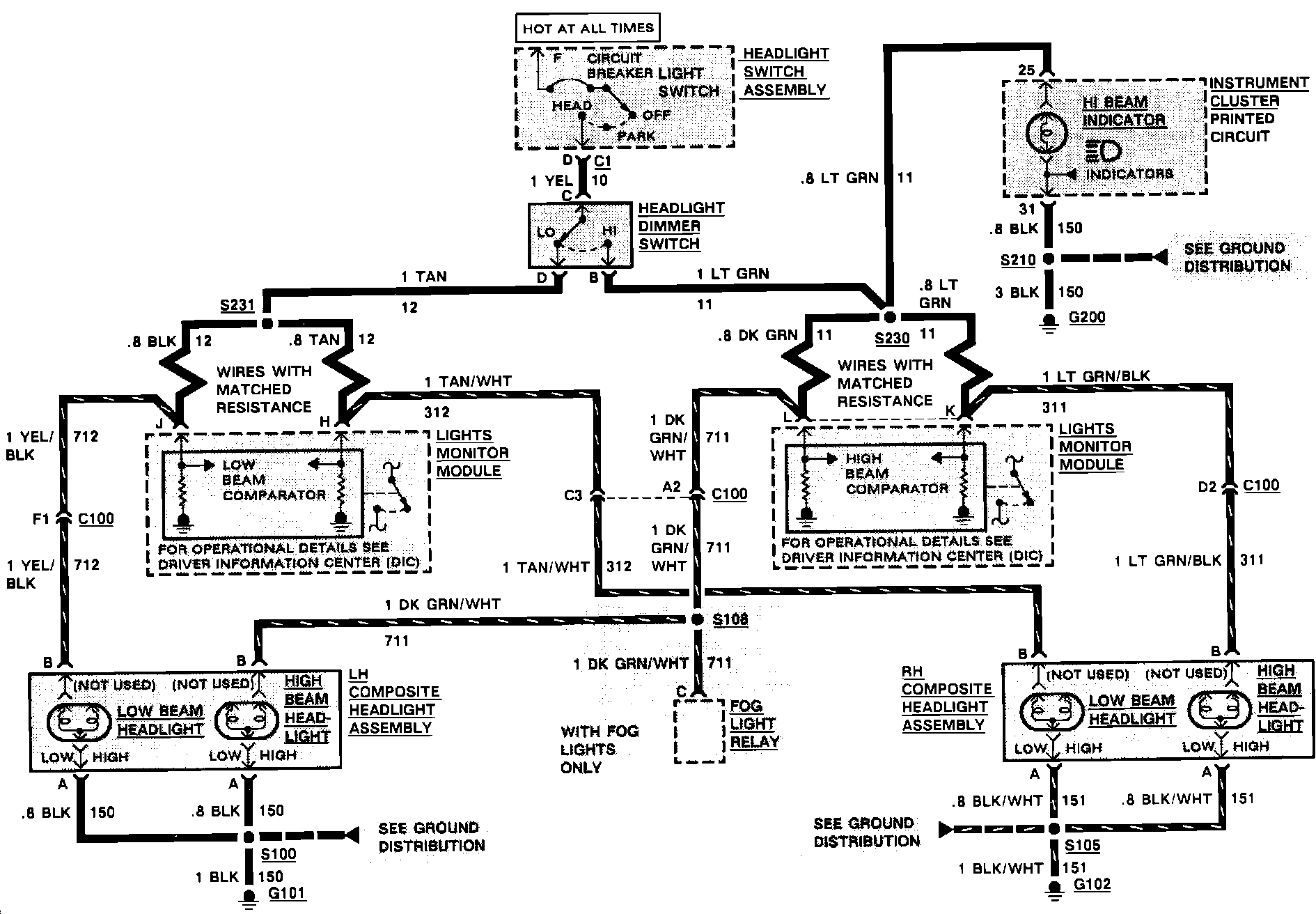

Headlamps (W/DIC):
