A/T - Revised 1-2 and 3-4 Accumulator Spring Chart

89pontiac01

Bulletin Number: 89-7-12
Reference Number: 877152R

Publish Date: 1/89
Subject: SERVICE MANUAL UPDATE - REVISED 1-2 AND 3-4 ACCUMULATOR SPRING CHART

Models

Affected: 1989 FIREBIRD EQUIPPED WITH 700-R4



BULLETIN COVERS:

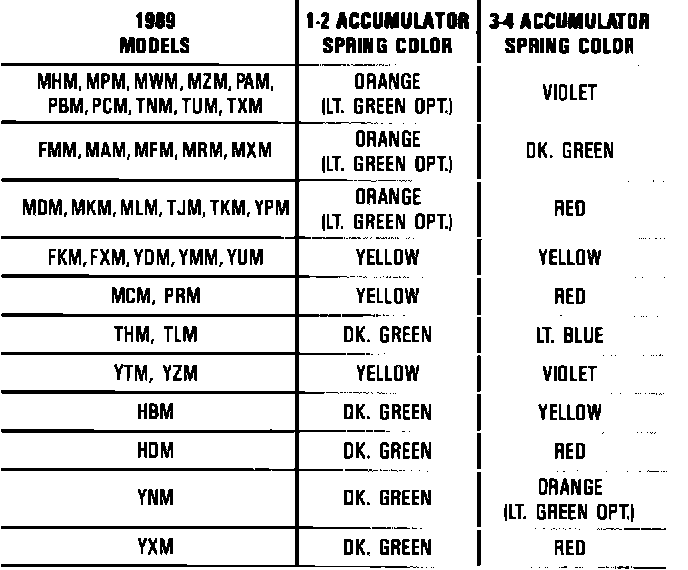

Revised 1-2 and 3-4 accumulator spring chart. The new chart is applicable to all 1989 THM 700-R4/ HYDRA-MATIC 4L60 transmissions.

SERVICE MANUAL REFERENCE:

This information is updated for 1989 Service Manuals printed prior to December 1988. Use the chart to update your 1989 THM 700-R4 Unit Repair Service Manual Section, page 700-R4-46 Figure 111.
