Home
>>
Pontiac
>>
1989
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G103
G103

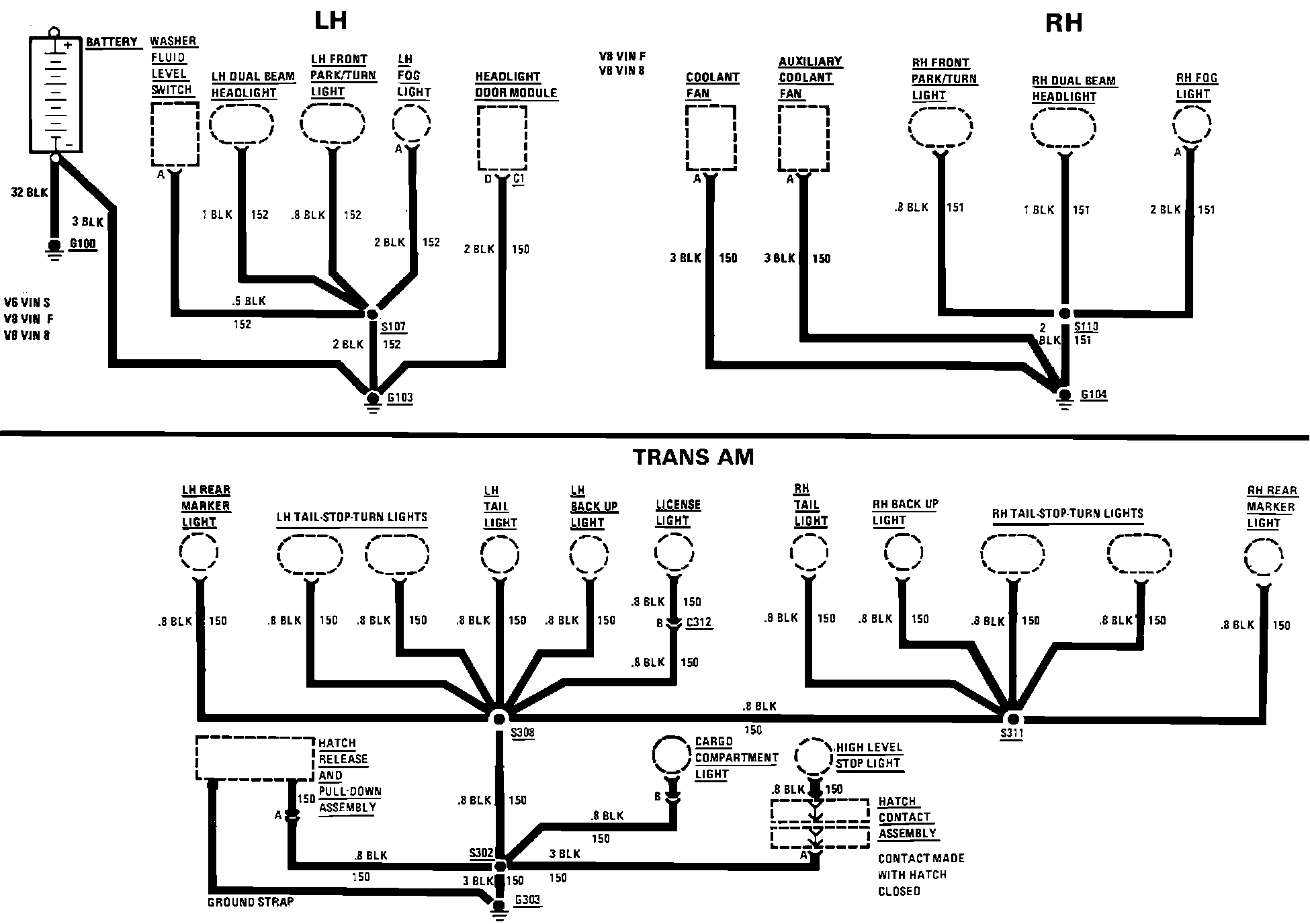

Ground Distribution (G103, G104 & G303):
