Removal/Installation

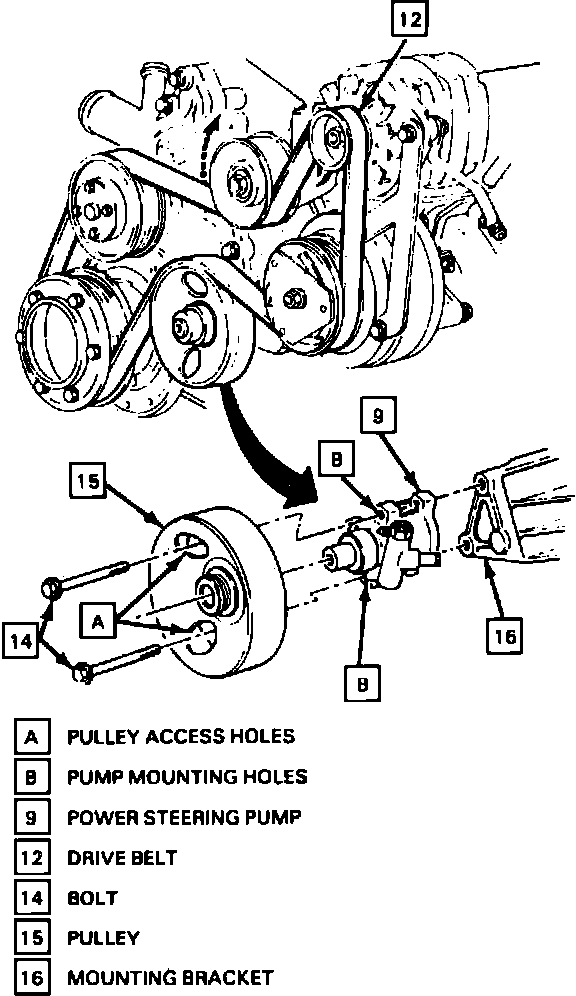

Fig. 12 Power Steering Pump Installation. 3.8L Turbo:

1. Place steering wheel in full left turn position.
2. Disconnect battery ground cable.
3. Remove serpentine drive belt, then remove left hand intercooler bracket.
4. Raise and support vehicle.
5. Disconnect pressure and return hoses from power steering pump.
6. Align holes in pump pulley with mounting bolt holes on pump, then remove mounting bolts.
7. Remove power steering pump, Fig. 12.
8. Reverse procedure to install.
