Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1989
>>
Firebird V6-231 3.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Fuse
Courtesy Fuse

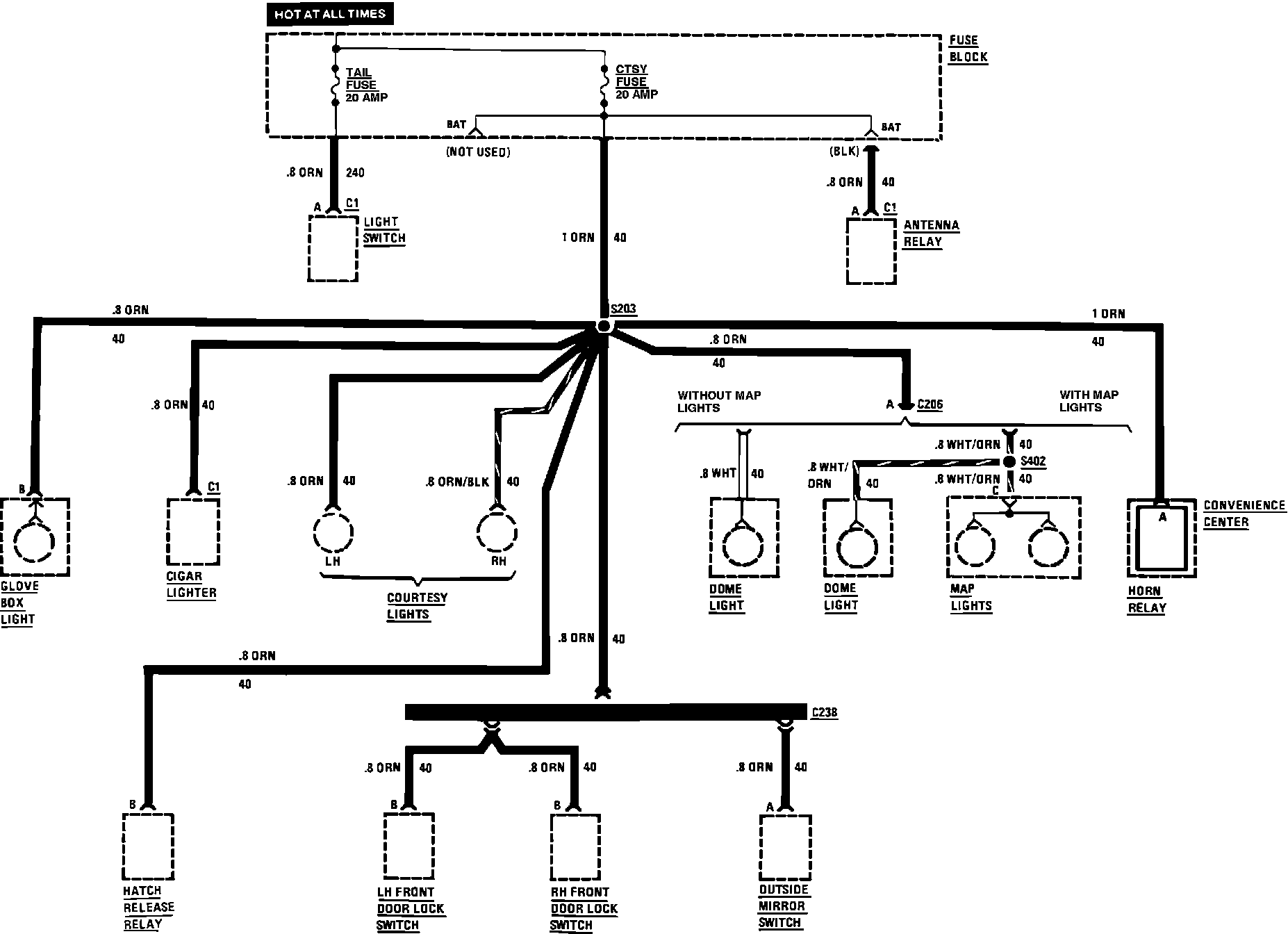

Fuse Block Details (CTSY Fuse & Tail Fuse):
