Serpentine Drive Belt

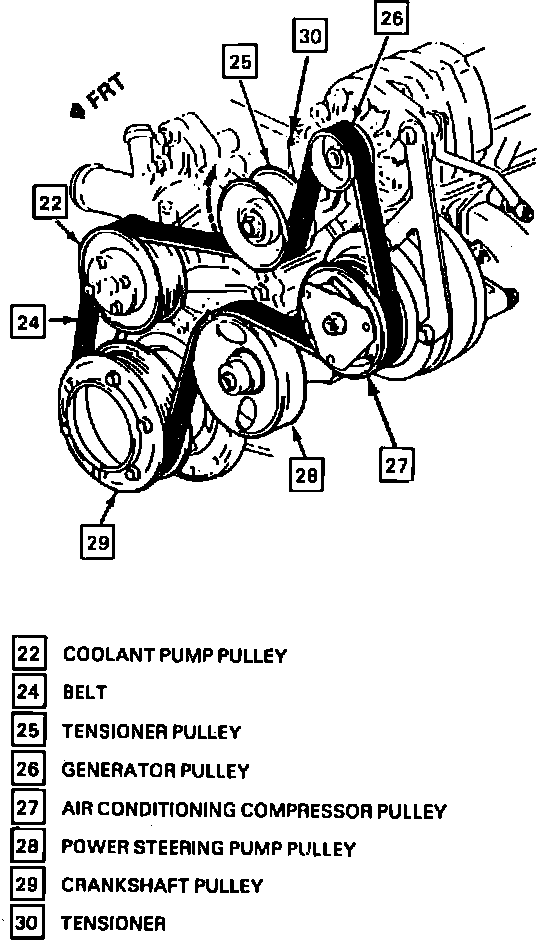

Fig. 12 Serpentine Drive Belt Routing:

1. Disconnect battery ground cable.
2. Rotate tensioner upward and remove drive belt from all pulleys except crankshaft pulley.
3. Raise and support vehicle, then remove belt from crankshaft pulley.
4. Reverse procedure to install. Refer to Fig. 12 for serpentine belt routing diagram.
