Water Pump: Service and Repair

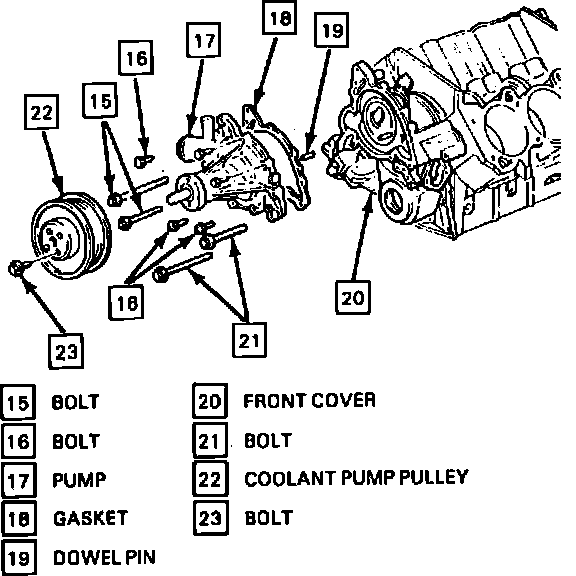

Fig. 14 Water Pump Replace:

1. Disconnect battery ground cable.
2. Drain cooling system.
3. Remove clamps, then remove intermediate hose.
4. Remove air cleaner duct.
5. Remove serpentine drive belt.
6. Remove water pump pulley attaching bolts, then remove pulley.
7. Disconnect radiator and heater hoses from water pump.
8. Remove water pump attaching bolts, then remove water pump, Fig. 14.
9. Reverse procedure to install.
