Piston Measurements and Replacement

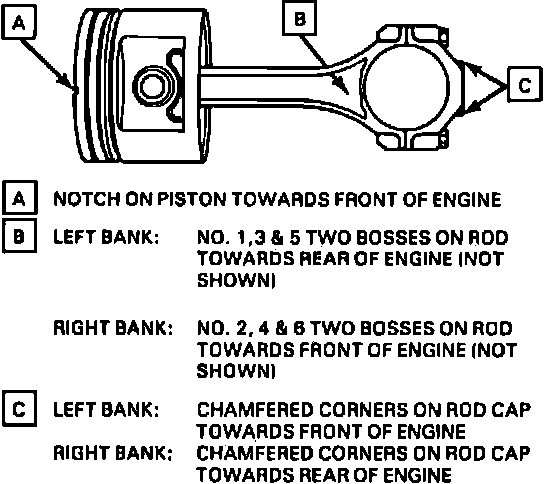

Fig. 8 Piston & Connecting Rod Assembly:

Rods and pistons should be assembled and installed as shown in Fig. 8.
Measure connecting rod side clearance using a feeler gauge. Clearance obtained should be .004-.015 inch.
